LT-112A
Detailed description:

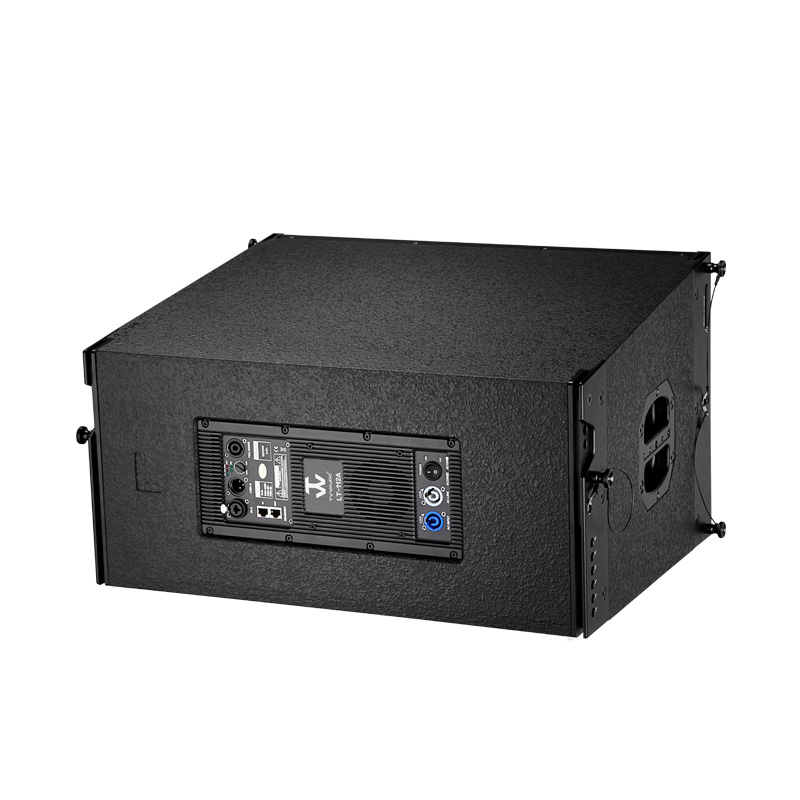

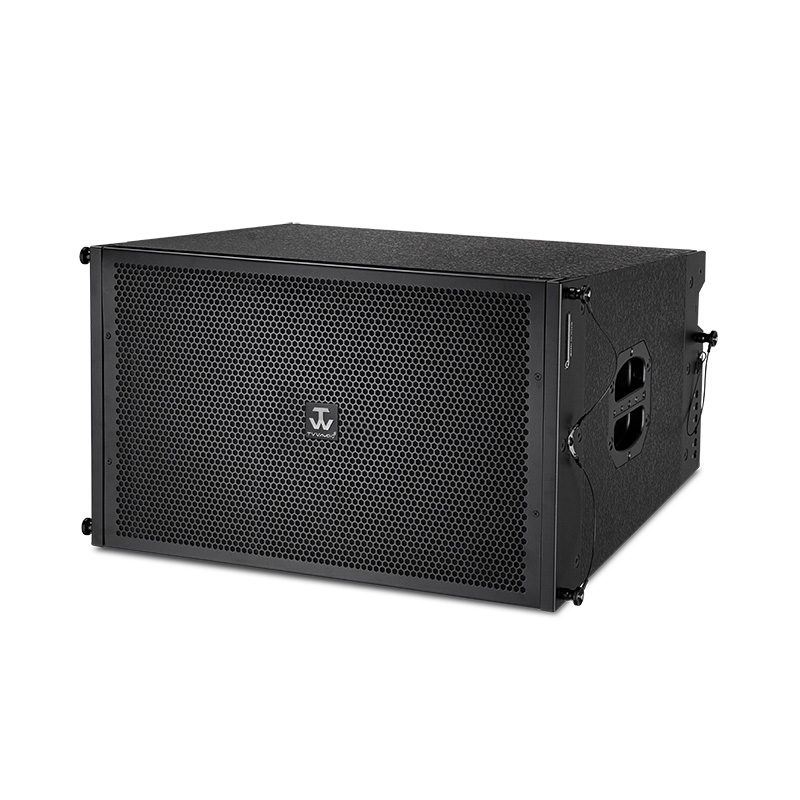

LT-112A are single twelve active and passive compact high-power vertical line array speakers, using a low loss directional waveguide horn that forms a 120 degree phase with the low frequency, allowing the concentrated transmission of medium and high frequency sound pressure to the farthest distance. The high pitched sound of this linear array speaker is clear, the vocals are natural, and the mid-range penetration is strong. Each box has an adjustable angle of 0-10 degrees between them, designed with a convenient hanging installation system, and can stack 2-4 boxes directly on top of the subwoofer for use. It can be used together with active or passive single eighteen subwoofers to meet the sound amplification needs of different performance activities.
Product Parameters:
Technical Specifications
Rated Power: 500W RMS
Peak Power Program: 1000W RMS
Unit configuration components: LF 1 x 12inch+HF 2 x 1.7inch
Connection: XLR IN/OUT vs 2 x Neutrik Speakon (4 Pins LF 1+1-, HF 2+2-)
Sensitivity (1W @ 1M): 105dB
Maximum SPL: 135dB Peak @ 1M
Impedance: 8Ohm
Frequency Range: 55 Hz~20 KHz
Horn Dispersion: V 120 x H 10 Degree
Color: Black or White
Net weight N. Weight: 40kgs
Box dimensions (W x D x H): 628 x 505.7 x 380mm
Packaging dimensions (W x D x H): 585 x 460 x 709mm
Combined with amplifier power Rec. Amplifier Power: 2x900W @ 8Ohm
Size & Specification:
Box dimensions (W x D x H): 628 x 505.7 x 380mm
Packaging dimensions (W x D x H): 585 x 460 x 709mm
Project Applications:
Project application information
