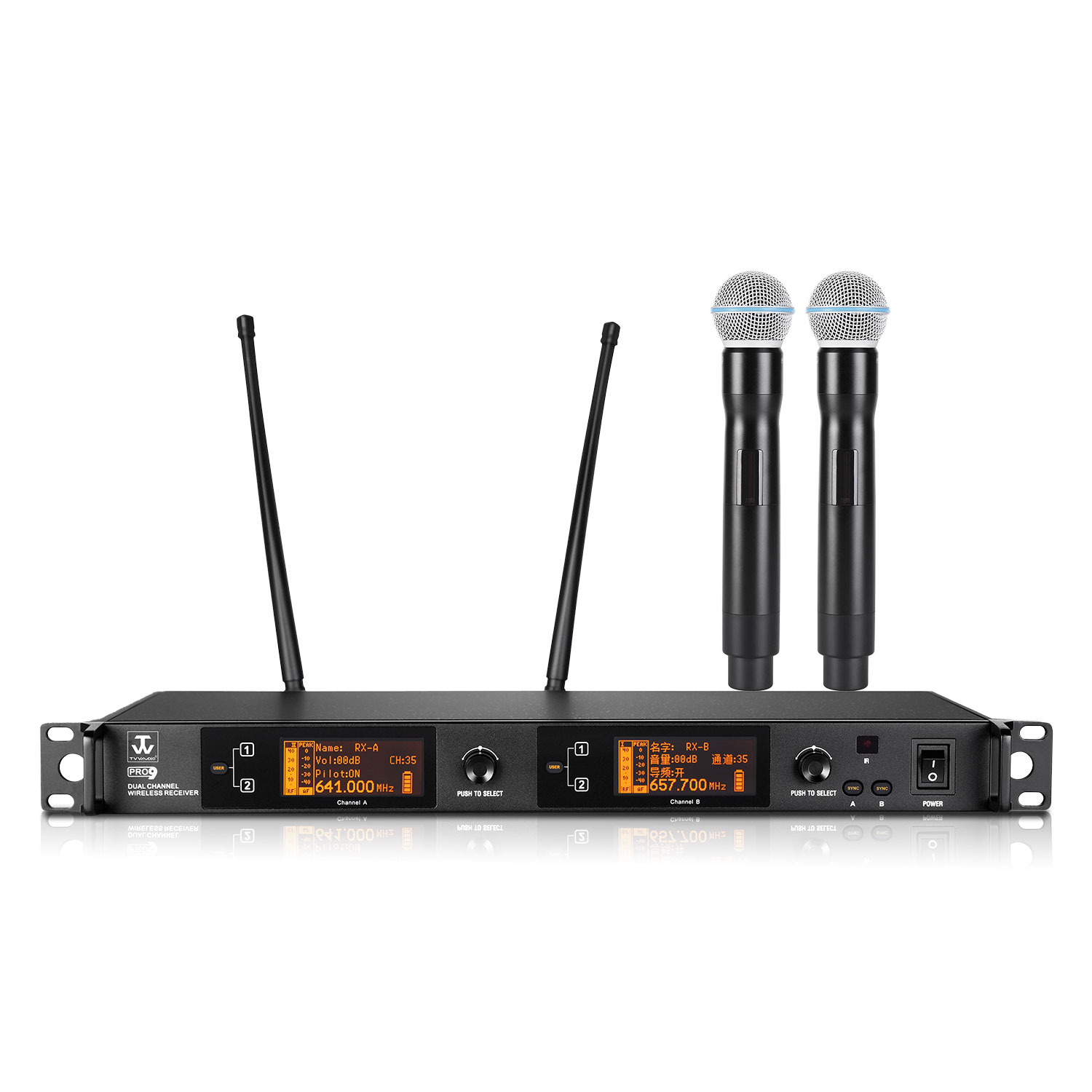

PRO9- Handheld
-A highly sensitive and low-noise microphone that can accurately capture sound sources while effectively suppressing environmental noise and echoes, ensuring recording quality
Detailed description:
Detailed description information
Product Parameters:
Main Features:
• Bilingual (Chinese/English) interface with free switching;
• Supports 80 channels stacked on the same platform;
• Each channel (handheld or bodypack) can be switched with one button, with independent parameter settings;
• Uses lspro's proprietary noise reduction technology with ultra-cardioid capsule module, completely eliminating friction noise;
• lspro anti-pop audio processing technology prevents popping sounds from the mic;
• True automatic diversity reception;
• Latest technology audio circuitry for cleaner and fuller sound quality;
• Built-in spectrum analyzer to quickly scan and clearly display frequencies with interference;
• Integrated solid aluminum alloy side panel design;
• 600 freely selectable frequency points, 32 preset channels without mutual interference;
• All functions operated via one-button jog control;
• Transmitter has MUTE and lock operations;
• Allows custom naming for microphone users;
• Receiver display uses dual-color design: red in standby, orange when mic signal is received;
• Receiver antenna base provides 12V (80mA) power output for directional antennas.
Specifications:
Chassis: EIA standard 1U
Channel Groups: Dual channel
Frequency Stability: ±0.005%, controlled by PLL phase-locked loop
Carrier Frequency Band: UHF 603-935 MHz
Factory Preset Channels: 32 preset channels
Effective Working Distance: Generally 90 meters (open space)
Oscillation Method: PLL phase-locked loop frequency control
Sensitivity: S/N >60dB at 6dBμV input with 25KHz deviation
Bandwidth: 30MHz
Maximum Deviation: ±45KHz
Overall S/N Ratio: >105dB
Total Harmonic Distortion: <0.7% @ 1KHz
Frequency Response: 45Hz～18KHz ±3dB
Power Supply: 100-240V AC 50/60 Hz, 10W
