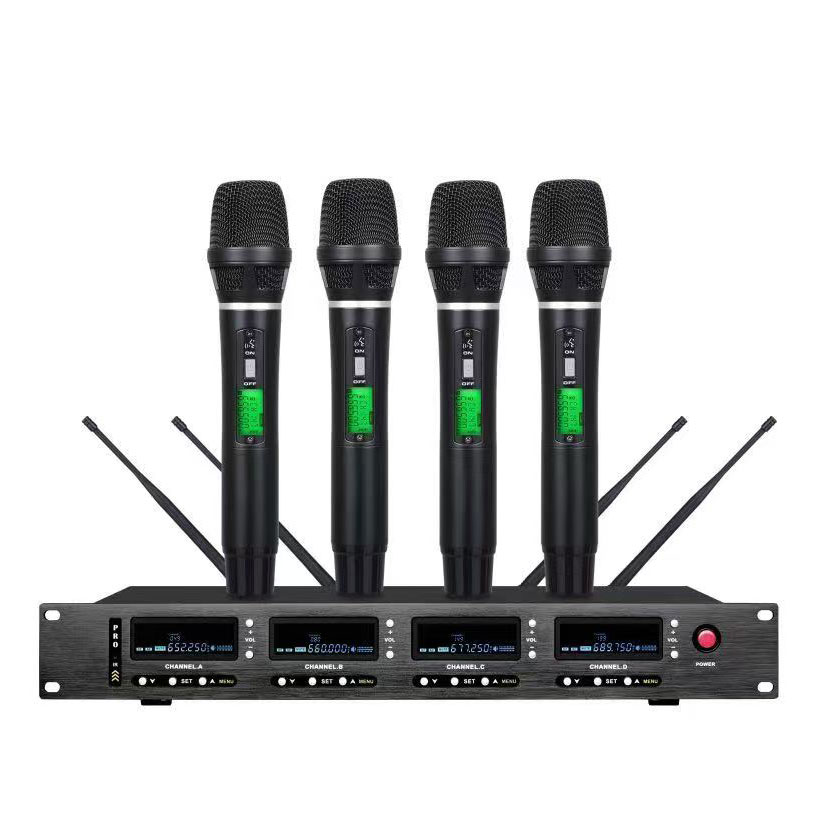

P-940S
-A highly sensitive and low-noise microphone that can accurately capture sound sources while effectively suppressing environmental noise and echoes, ensuring recording quality
Detailed description:
Detailed description information
Product Parameters:
Main Features:
1. 1U standard rack design with a metal casing, four-channel reception;
2. Pure automatic channel selection (true diversity) reception method, not only for long-distance reception but also to eliminate audio dropouts;
3. Advanced automatic frequency scanning function (Auto Scan), quickly searching and locking interference-free frequencies in working environments;
4. Infrared data automatic synchronization function (SYNC);
5. Uses the most stable phase-locked loop (PLL) synthesizer tuner, effectively blocking noisy RF interference from the environment;
6. 200 selectable UHF channels with 32 pre-set interference-free frequency groups;
7. OLED display screen with clear system info visible from any angle;
8. Balanced XLR output and unbalanced 6.3mm (1/4”) output;
9. Designed for stage performances with high-fidelity voice, powerful features, and stable professional quality.
Transmitter:
1. Ultra-wideband 120MHz, standard design performance microphone with stable features and excellent voice performance;
2. Smooth audio signal with wide frequency response;
3. Detachable microphone head module design, with optional other microphone capsule components;
4. OLED screen clearly showing channel and battery levels from any angle;
5. Infrared data sync function for automatic, fast, and accurate frequency matching with the receiver;
6. Intelligent low battery warning display;
7. Dynamic audio compression and automatic level control circuit.
Applicable For: Outdoor school performances, small and medium stages.
Suitable Occasions: Small to medium-sized performances, conference halls, etc.
Receiver Technical Specs:
Carrier Frequency Range: UHF 520~940MHz (optional)
Channel: Single/Dual/Four channels
Modulation: FM
Sensitivity: Input 6dBv, S/N >60dB
Bandwidth: 30MHz
Maximum Deviation: ±45KHz
Overall S/N Ratio: >105dB
Total Harmonic Distortion: <0.7% @1KHz
Frequency Response: 45Hz~18KHz ±3dB
Power Supply: DC 12V~16V 10W
Output Jacks: XLR parallel and 6.3 unbalanced jacks
Effective Working Distance: 300 meters
Handheld Technical Specs:
Carrier Frequency Range: UHF 520~940MHz (optional)
Oscillation Method: PLL phase-locked frequency synthesis
Harmonic Radiation: <-65dBm
Maximum Deviation: ±45KHz
Frequency Response: 45Hz~18KHz ±3dB
Bandwidth: 120MHz
Microphone Head: Dynamic
RF Power Output: 15MW
Battery: AA*2
Current Consumption: <90mA
Continuous Working Time: 12 hours
Bodypack Technical Specs:
Carrier Frequency Range: UHF 520~940MHz (optional)
Oscillation Method: PLL phase-locked frequency synthesis
Harmonic Radiation: <-65dBm
Maximum Deviation: ±45KHz
Frequency Response: 45Hz~18KHz ±3dB
Bandwidth: 120MHz
Microphone Head: Condenser
RF Power Output: 15MW
Battery: AA*2
Current Consumption: <90mA
Continuous Working Time: 12 hours
Conference Technical Specs:
Carrier Frequency Range: UHF 520~940MHz (optional)
Oscillation Method: PLL phase-locked frequency synthesis
Harmonic Radiation: <-65dBm
