P-920T
-A highly sensitive and low-noise microphone that can accurately capture sound sources while effectively suppressing environmental noise and echoes, ensuring recording quality
Detailed description:
Detailed description information
Product Parameters:
Main Features:

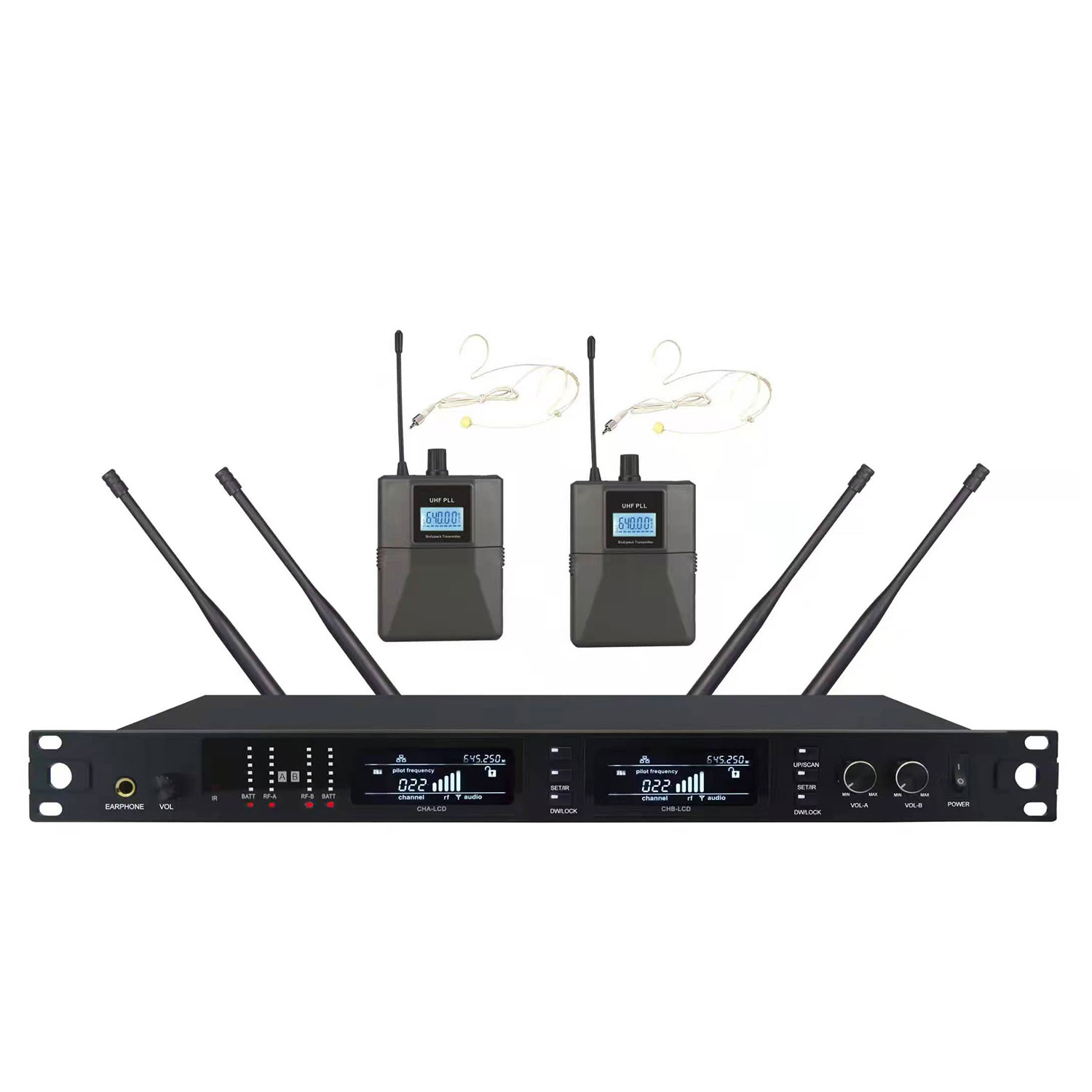

1. Metal casing with a 1U standard rack design, dual-channel reception;
2. Fully automatic channel selection (true diversity) reception method, offering long reception distance and eliminating audio dropouts;
3. Advanced automatic frequency scanning (Auto Scan) feature, quickly searching and locking interference-free frequencies in working environments;
4. Infrared data automatic synchronization (SYNC) function;
5. Uses a highly stable phase-locked loop (PLL) synthesized tuner, effectively blocking noisy RF interference from the environment;
6. 200 selectable UHF channels with 32 factory preset, non-interfering frequency groups;
7. OLED screen, clear display of system information from any angle;
8. Balanced XLR output and unbalanced 6.3mm (1/4") output;
9. Specially designed for stage performances, offering high-fidelity sound, powerful functions, and highly stable professional quality.
Transmitter:
1. Ultra-wide 120MHz frequency range, standard design performance microphone with stable characteristics and excellent sound quality;
2. Smooth audio signal with a broad frequency response curve;
3. Detachable microphone head module design, optional other capsule components;
4. OLED screen, clear display of channel and battery level from any angle;
5. Infrared data sync function for automatic, fast, and precise frequency matching with receiver;
6. Intelligent low battery warning display;
7. Dynamic audio compression and automatic level control circuit.
Applicable Scope: Outdoor performances at schools, small and medium-sized stages.
Suitable Occasions: Small to medium performances, conference halls, etc.
Receiver Technical Parameters:
Channel Groups: Dual channel
Frequency Stability: ±0.005%, PLL phase-locked frequency control
Carrier Frequency Range: UHF 620-850 MHz
Modulation Type: FM
Effective Operating Distance: 400 meters
Oscillator Mode: PLL phase-locked frequency synthesis
Sensitivity: 5dBμV, S/N>60dB at 25 deviation
Bandwidth: 40MHz
Maximum S/N Deviation: >108dB
Total T.H.D.: <0.4% @ 1KHz
Overall Frequency Response: 65Hz–18KHz ± 3dB
Power Supply: 100-240V AC 50/60Hz, 10W
Transmitter Technical Parameters:
Carrier Frequency Range: UHF 620-850 MHz
Oscillator Mode: PLL phase-locked frequency synthesis
Harmonic Radiation: < -63dBm
Bandwidth: 40MHz
Maximum Deviation: ±45KHz
Microphone: Dynamic, cardioid
RF Output Power: 8mW / 15mW
Battery: AA x 2
Current Consumption: 90mA
Battery Life: About 10 hours
