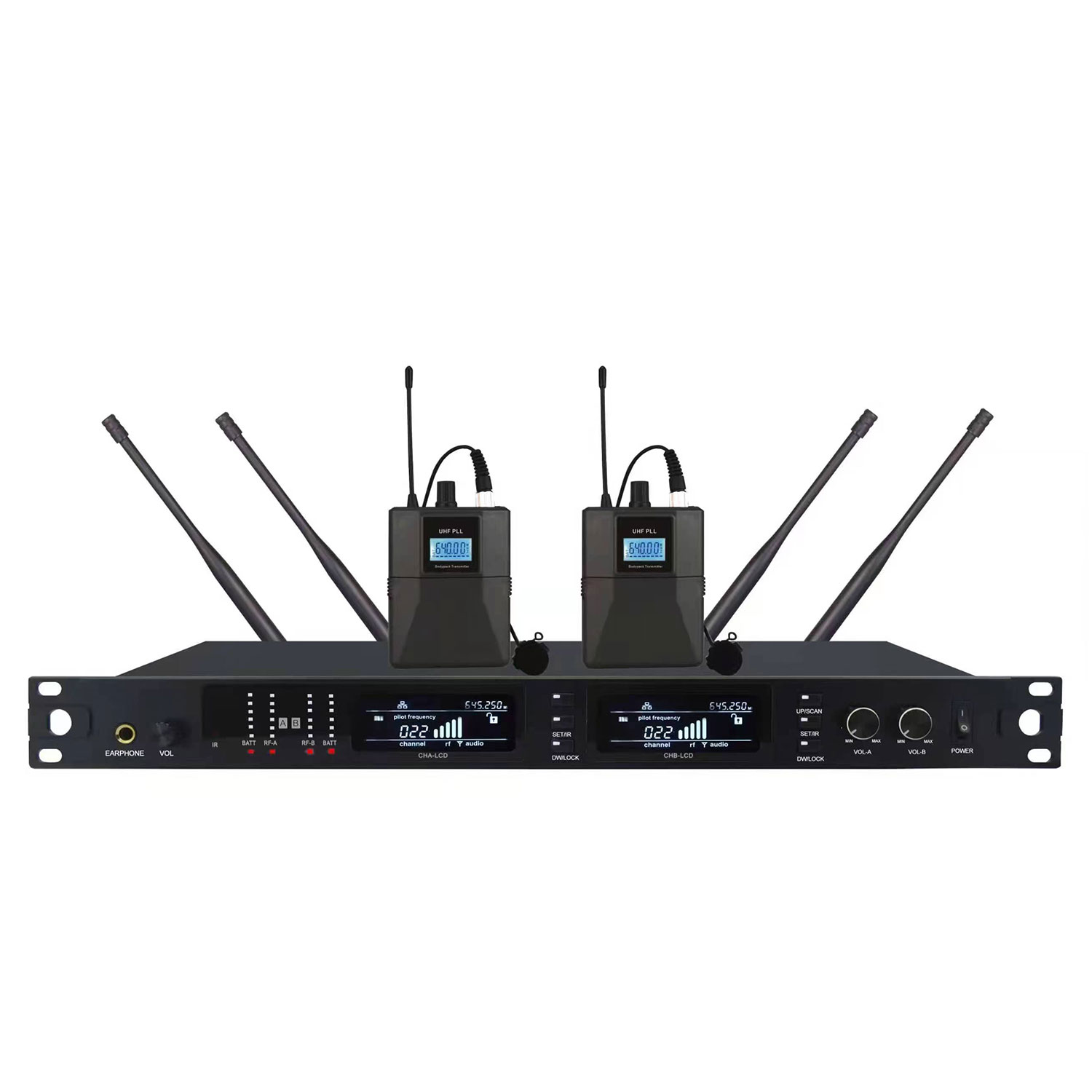

P-920L
-A highly sensitive and low-noise microphone that can accurately capture sound sources while effectively suppressing environmental noise and echoes, ensuring recording quality
Detailed description:
Detailed description information
Product Parameters:
Key Features:
1. 1U standard rack design with a metal casing, dual-channel reception;
2. Uses pure automatic diversity reception (true diversity), offering long reception distance while effectively eliminating dropouts;
3. Advanced automatic frequency scanning (Auto Scan) to quickly search and lock interference-free frequencies in the working environment;
4. Infrared data automatic sync function (SYNC);
5. Uses the most stable phase-locked loop (PLL) synthesizer, effectively blocking noisy RF interference in the environment;
6. 200 selectable UHF channels, with 32 preset frequency groups that don’t interfere with each other;
7. OLED screen that’s clear from any angle;
8. Balanced XLR output and unbalanced 6.3mm (1/4") output;
9. Designed for stage performances, with high-fidelity voice, powerful features, and stable professional quality.
Transmitter:
1. Uses an ultra-wide 120MHz range, a stable and high-performance standard design for stage microphones;
2. Audio signal with smooth and wide frequency response;
3. Detachable microphone head module, optional other head components;
4. OLED screen clearly shows channel and battery level from any angle;
5. Infrared data sync, automatically, quickly, and accurately syncs with the receiver;
6. Smart low-battery warning display;
7. Dynamic audio compression and automatic level control circuitry
Applications: Outdoor school performances, small to medium-sized stages.
Suitable venues: Small to medium-sized events, conference halls, etc.
Receiver Technical Specifications:
Channel groups: Dual-channel
Frequency stability: ±0.005%, PLL phase-locked loop frequency control
Carrier frequency range: UHF 620-850 MHz
Modulation: FM
Effective working distance: 400 meters
Oscillator: PLL phase-locked frequency synthesis
Sensitivity: 5dBμV, S/N>60dB at 25 deviation
Bandwidth: 40MHz
Max S/N deviation: >108dB
Total T.H.D.: <0.4% @ 1KHz
Frequency response: 65Hz–18KHz ±3dB
Power supply: 100-240V AC 50/60 Hz, 10W
Transmitter Technical Specifications:
Carrier frequency range: UHF 620-850 MHz
Oscillator: PLL phase-locked frequency synthesis
Harmonic radiation: < -63dBm
Bandwidth: 40MHz
Maximum deviation: ±45KHz
Microphone type: Dynamic, cardioid
RF output power: 8mW / 15mW
Battery: 2x AA
Current consumption: 90mA
Battery life: About 10 hours
