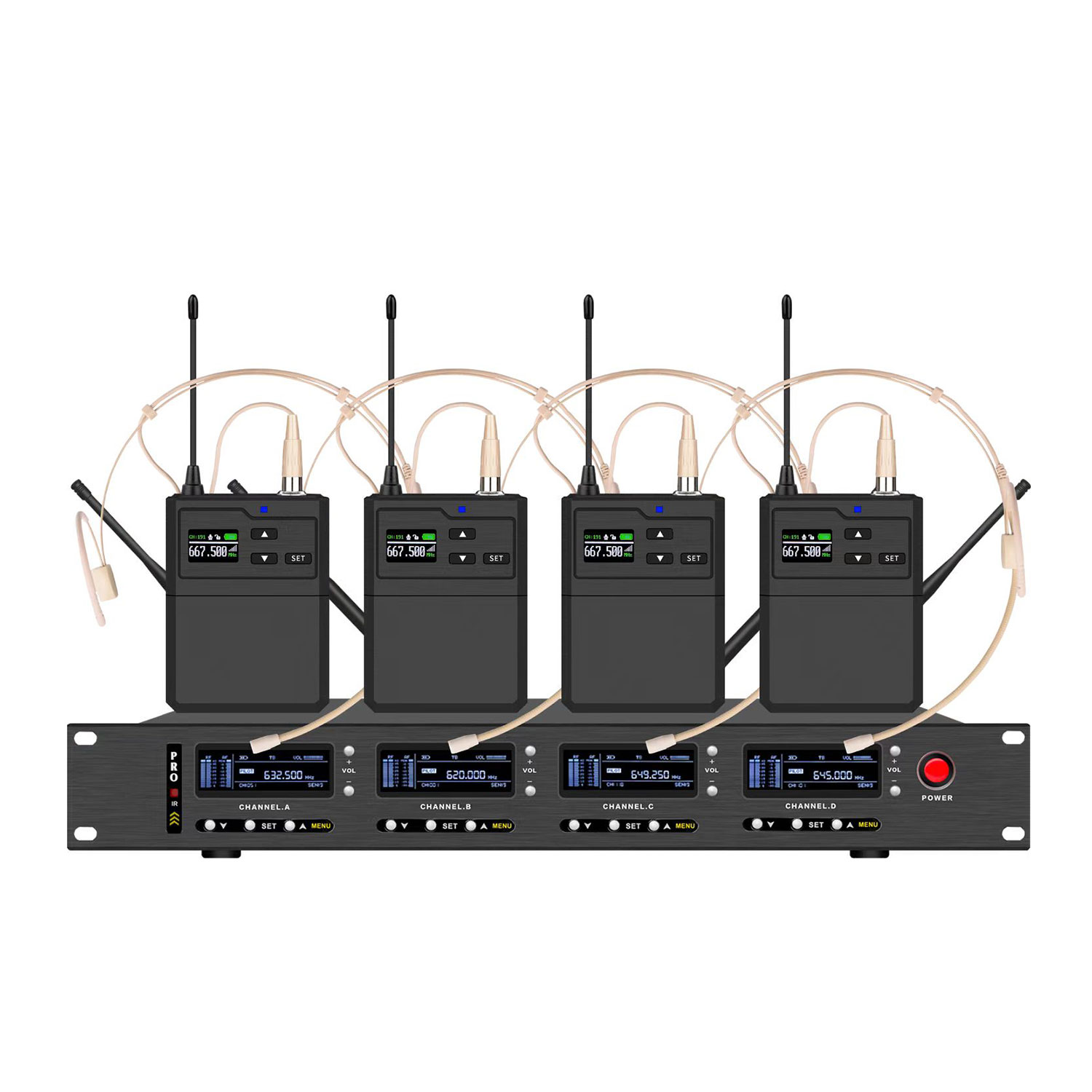

Main Features:

1. 1U standard metal rack design with four-channel reception;

2. Pure automatic channel selection (true diversity) reception method, not only long-range reception but also prevents signal dropout;

3. Advanced automatic frequency scanning function (Auto Scan) for quickly finding and locking interference-free frequencies in any environment;

4. Infrared data automatic synchronization function (SYNC);

5. Uses a highly stable phase-locked loop (PLL) synthesizer tuner to effectively block noisy RF interference from the environment;

6. 200 selectable UHF channels and 32 factory preset non-interfering frequency groups;

7. OLED screen with clear display from any angle;

8. Balanced XLR output and unbalanced 6.3mm (1/4”) output;

9. Designed specifically for stage performances, offering high-fidelity voice, strong functionality, and most stable professional quality.

Transmitter:

1. Ultra-wideband 120MHz with a standard performance microphone design that is both stable and delivers excellent voice quality;

2. Smooth audio signal with wide frequency response;

3. Detachable microphone head module design, with optional other microphone capsule components;

4. OLED screen clearly displays channel and battery level from any angle;

5. Infrared data sync for automatic, fast, and accurate pairing with the receiver;

6. Intelligent low battery warning display;

7. Dynamic audio compression and automatic level control circuit.

Applicable Scope: Outdoor performances at schools, small and medium-sized stages.

Applicable Occasions: Small to medium-sized performances, conference halls, etc.

Receiver Technical Specs:

Carrier Frequency Range: UHF 520~940MHz (optional)

Channel: Single/Dual/Four channels

Modulation: FM

Sensitivity: S/N>60dB at 6dBV input

Bandwidth: 30MHz

Max Deviation: ±45KHz

Overall S/N Ratio: >105dB

Total Harmonic Distortion: <0.7% @1KHz

Frequency Response: 45Hz~18KHz ±3dB

Power Supply: DC 12V~16V 10W

Output: XLR balanced and 6.3mm unbalanced jacks

Effective Working Range: 300 meters

Handheld Technical Specs:

Carrier Frequency Range: UHF 520~940MHz (optional)

Oscillation: PLL phase-locked frequency synthesis

Harmonic Emission: <-65dBm

Max Deviation: ±45KHz

Frequency Response: 45Hz~18KHz ±3dB

Bandwidth: 120MHz

Microphone Type: Dynamic

RF Output: 15mW

Batteries: AA*2

Current Consumption: <90mA

Continuous Working Time: 12 hours

Bodypack Technical Specs:

Carrier Frequency Range: UHF 520~940MHz (optional)

Oscillation: PLL phase-locked frequency synthesis

Harmonic Emission: <-65dBm

Max Deviation: ±45KHz

Frequency Response: 45Hz~18KHz ±3dB

Bandwidth: 120MHz

Microphone Type: Condenser

RF Output: 15mW

Batteries: AA*2

Current Consumption: <90mA

Continuous Working Time: 12 hours

Conference Mic Technical Specs:

Carrier Frequency Range: UHF 520~940MHz (optional)

Oscillation: PLL phase-locked frequency synthesis

Harmonic Emission: <-65dBm
