LT-212
Detailed description:

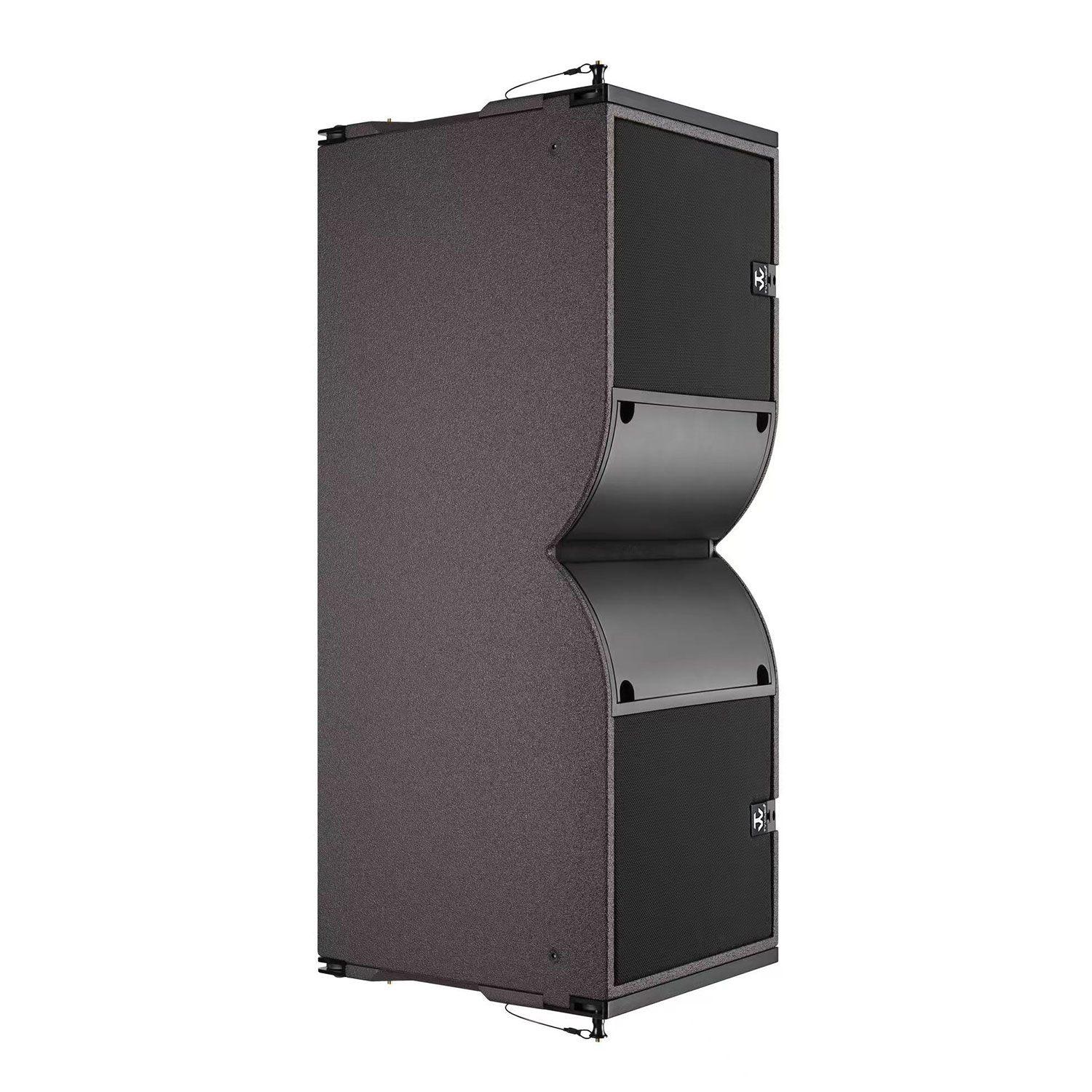

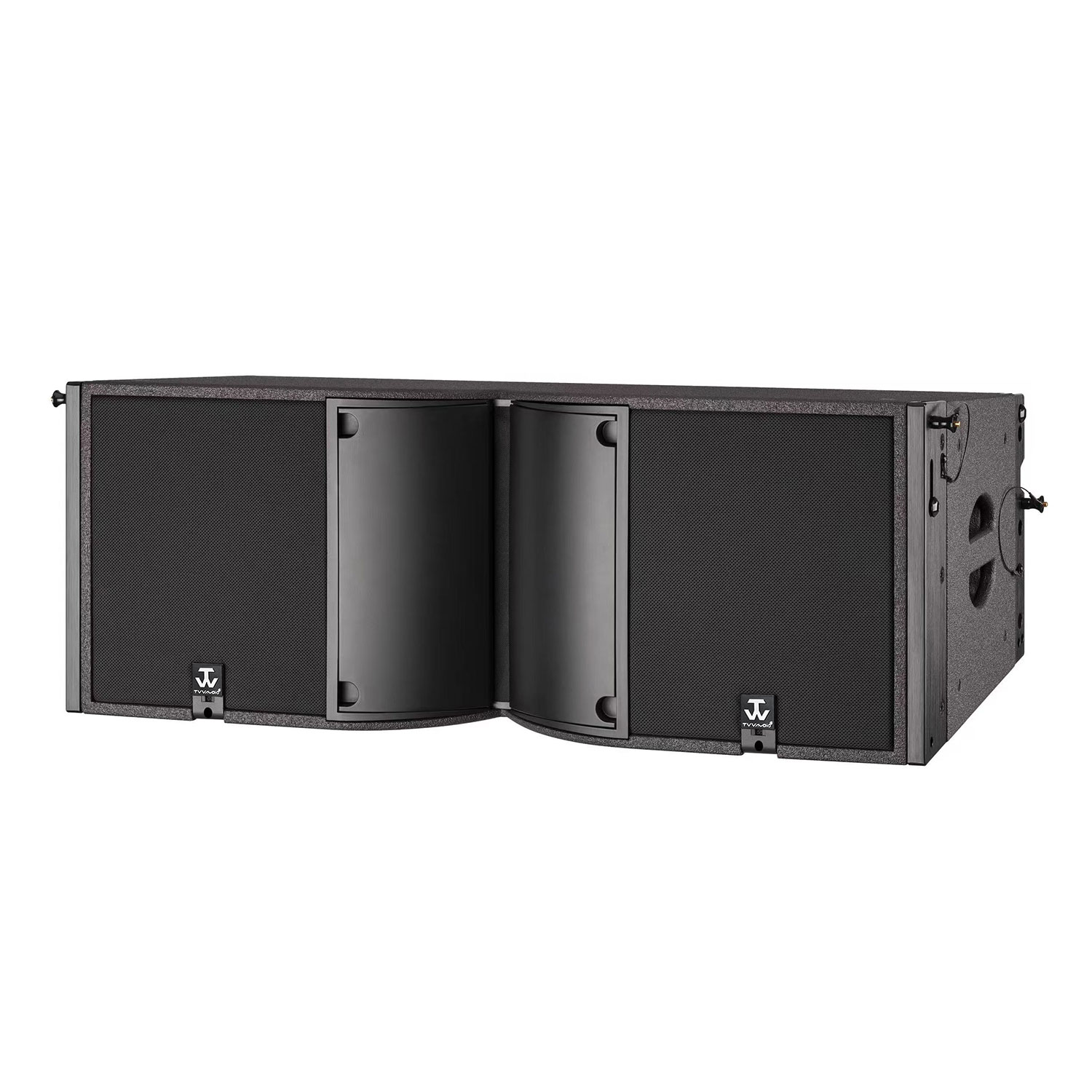

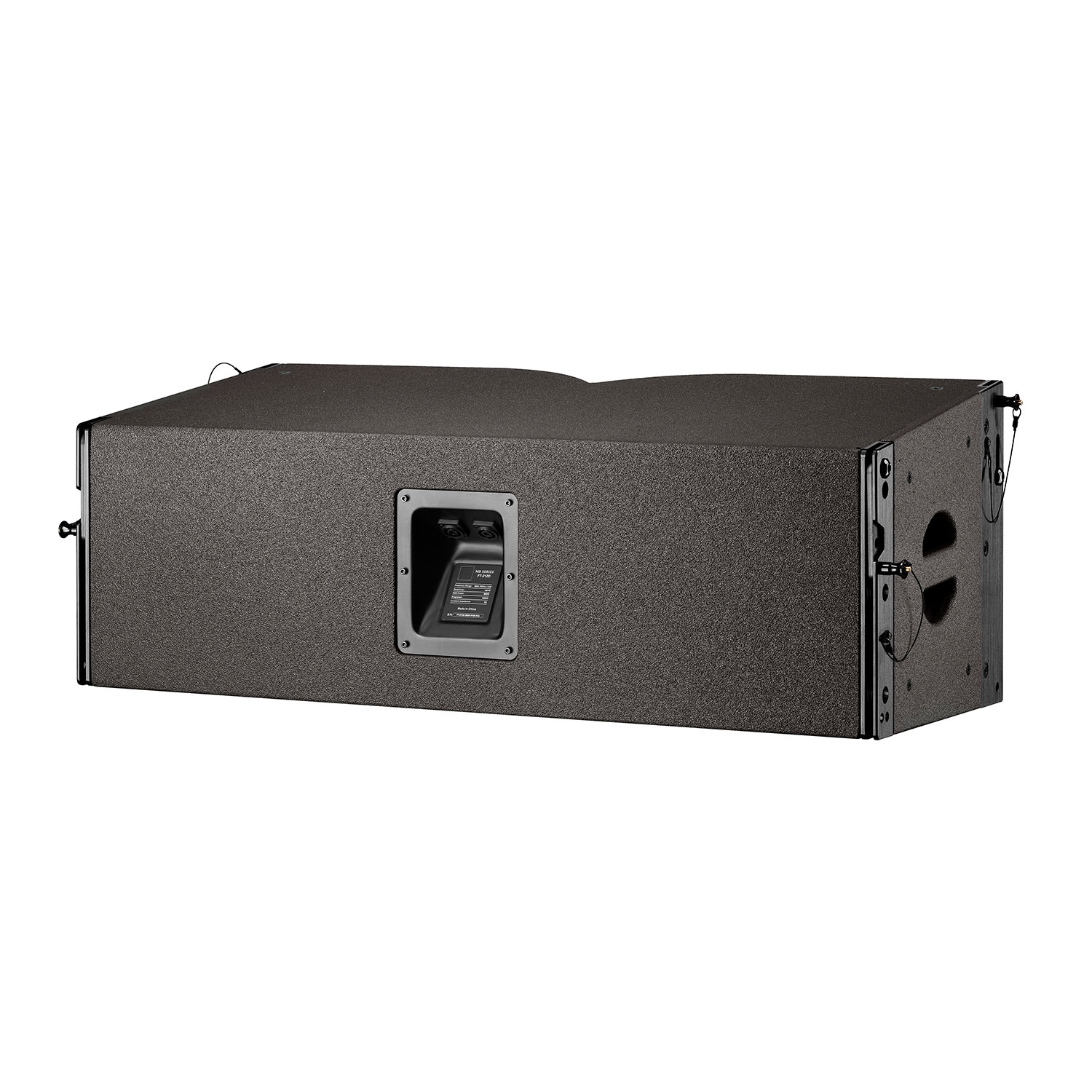

LT-212 are compact high-power vertical line array speakers with dual twelve active and passive modes, respectively. They use a low loss directional waveguide horn on top, which forms a 120 degree phase with the low frequency, allowing the concentrated transmission of medium and high frequency sound pressure to the farthest distance. The high pitched sound of this linear array speaker is clear, the vocals are natural, and the mid-range penetration is strong. Each box has an adjustable angle of 0-10 degrees between them, designed with a convenient hanging installation system, and can stack 2-4 boxes directly on top of the subwoofer for use. It can be used together with active or passive double eighteen subwoofers to meet the sound amplification needs of different performance activities.
Product Parameters:
Technical Specifications
Rated Power: 1000W RMS
Peak Power Program: 2000W RMS
Unit configuration components: LF 2 x 12inch+HF 2 x 1.7inch
Connection: XLR IN/OUT vs 2 x Neutrik Speakon (4 Pins LF 1+1-, HF 2+2-)
Sensitivity (1W @ 1M): 107dB
Maximum SPL: 137dB Peak @ 1M
Impedance: 8Ohm
Frequency Range: 75 Hz~20 KHz
Horn Dispersion: V 120 x H 10 Degree
Color: Black or White
Net weight N. Weight: 54kgs
Box dimensions (W x D x H): 960 x 510 x 383.5mm
Packaging dimensions (W x D x H): 585 x 460 x 1040mm
Combined with amplifier power Rec. Amplifier Power: 2x1500W @ 8Ohm
Size & Specification:
Box dimensions (W x D x H): 960 x 510 x 383.5mm
Packaging dimensions (W x D x H): 585 x 460 x 1040mm
