LT-712A + RT-403

-Application projects: Suitable for use in bars, wedding performances, hotel banquet halls, conference rooms, multifunctional halls, auditoriums, and other occasions.
Detailed description:

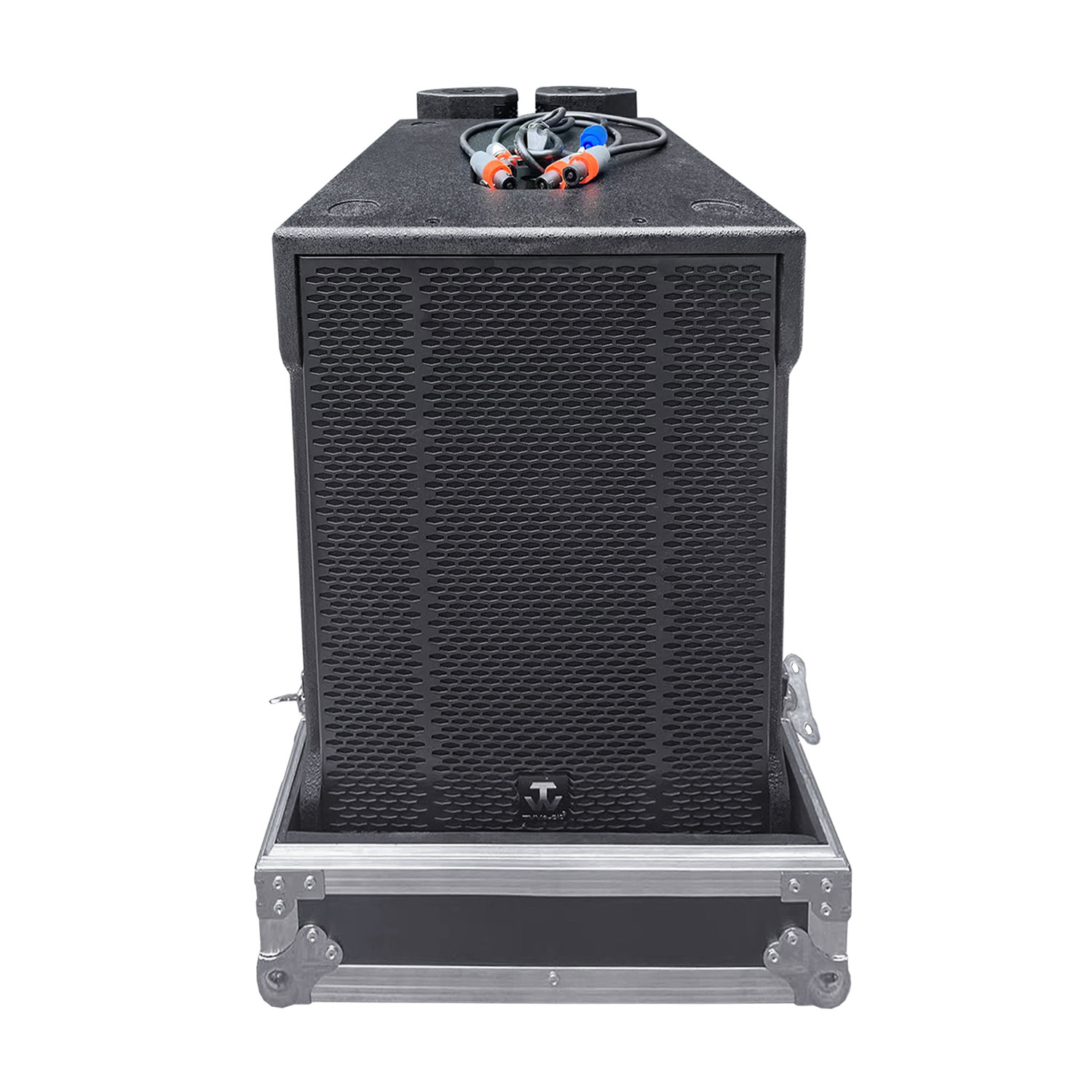

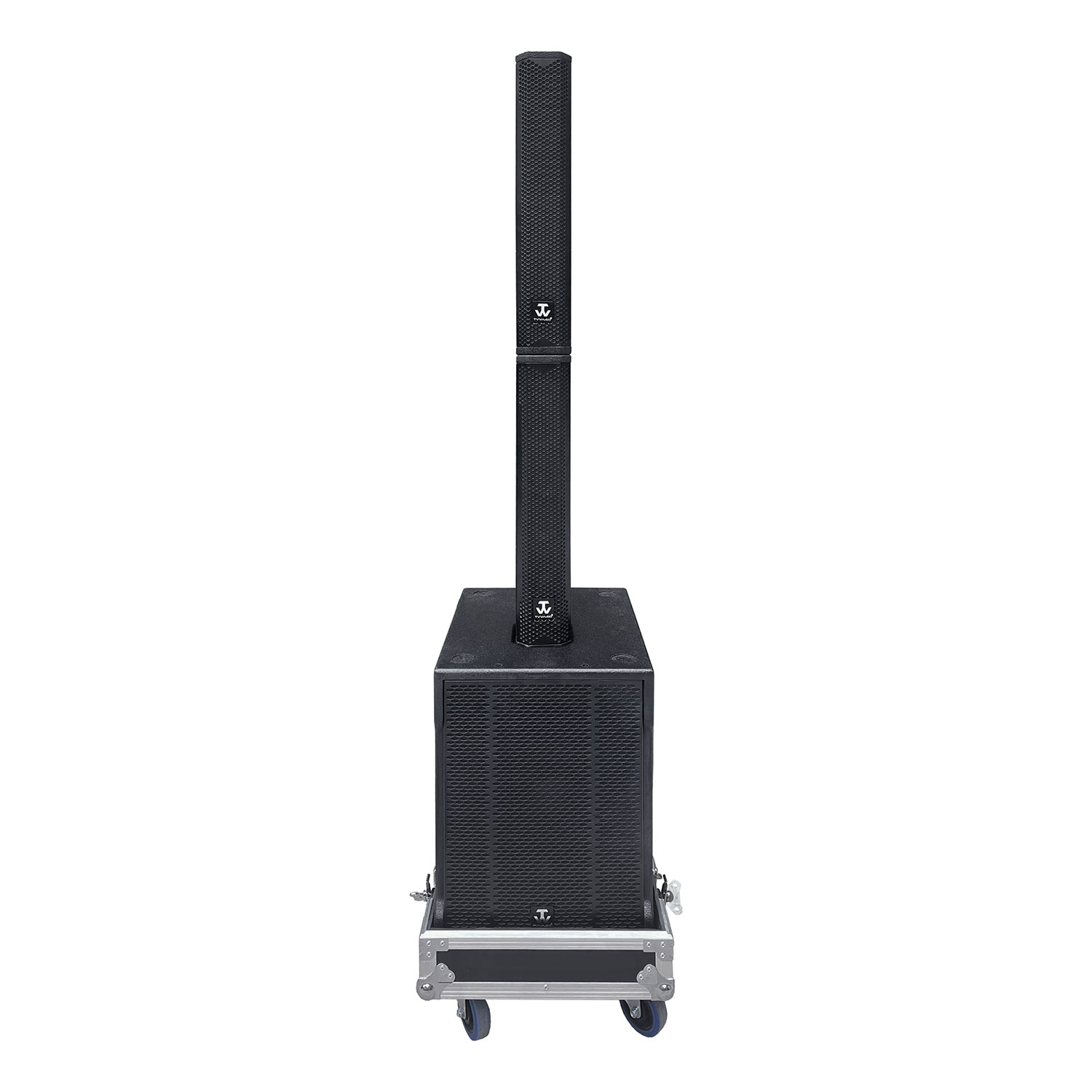

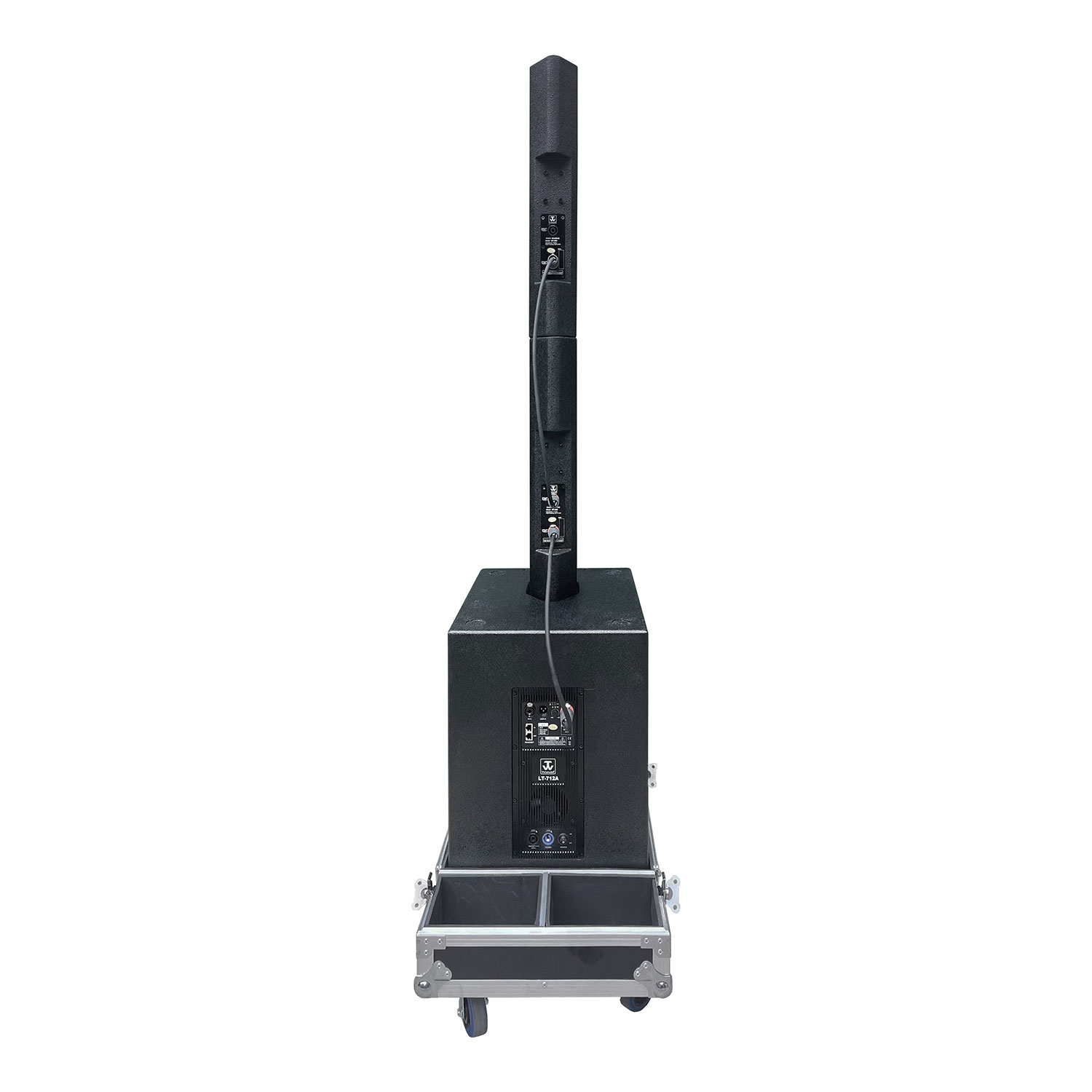

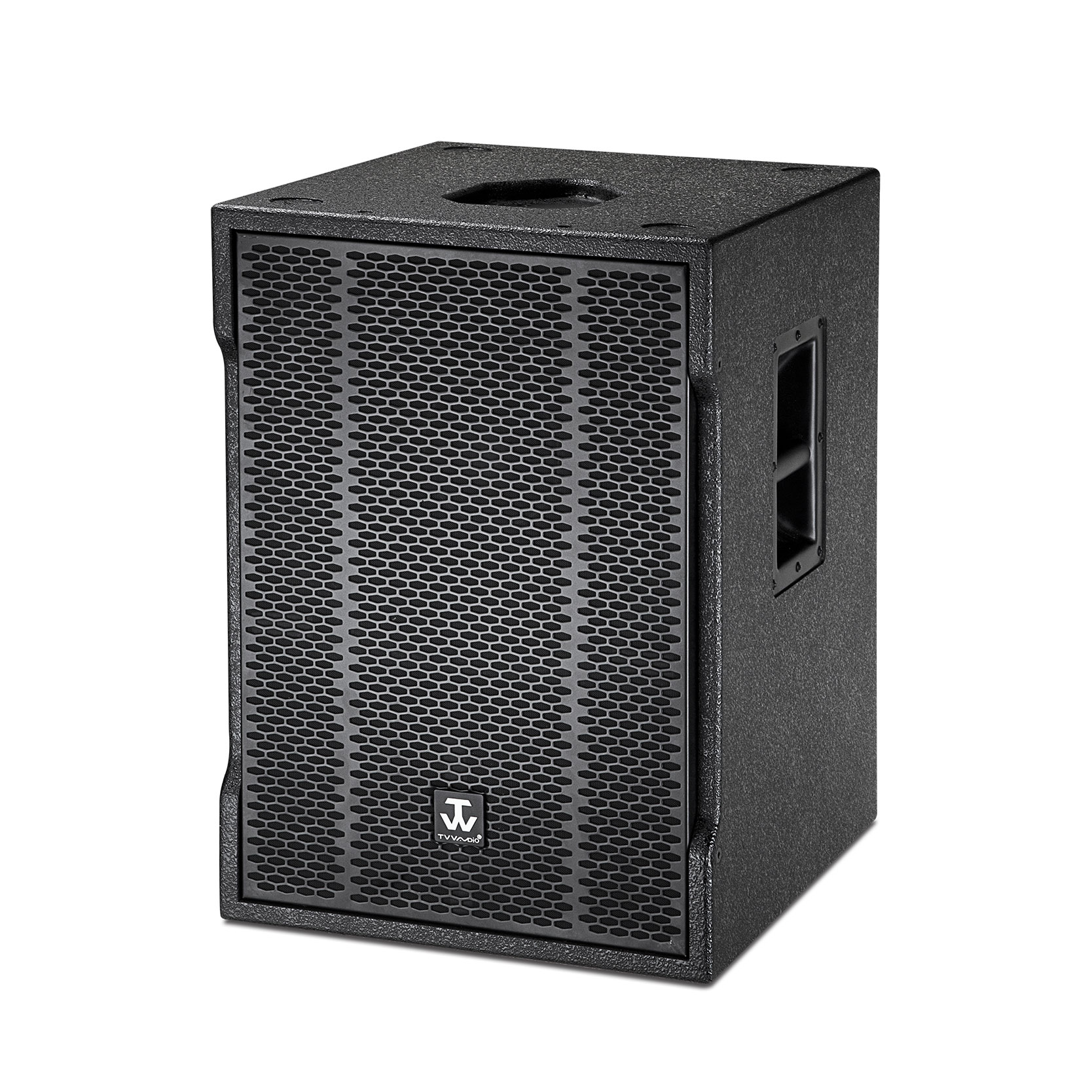

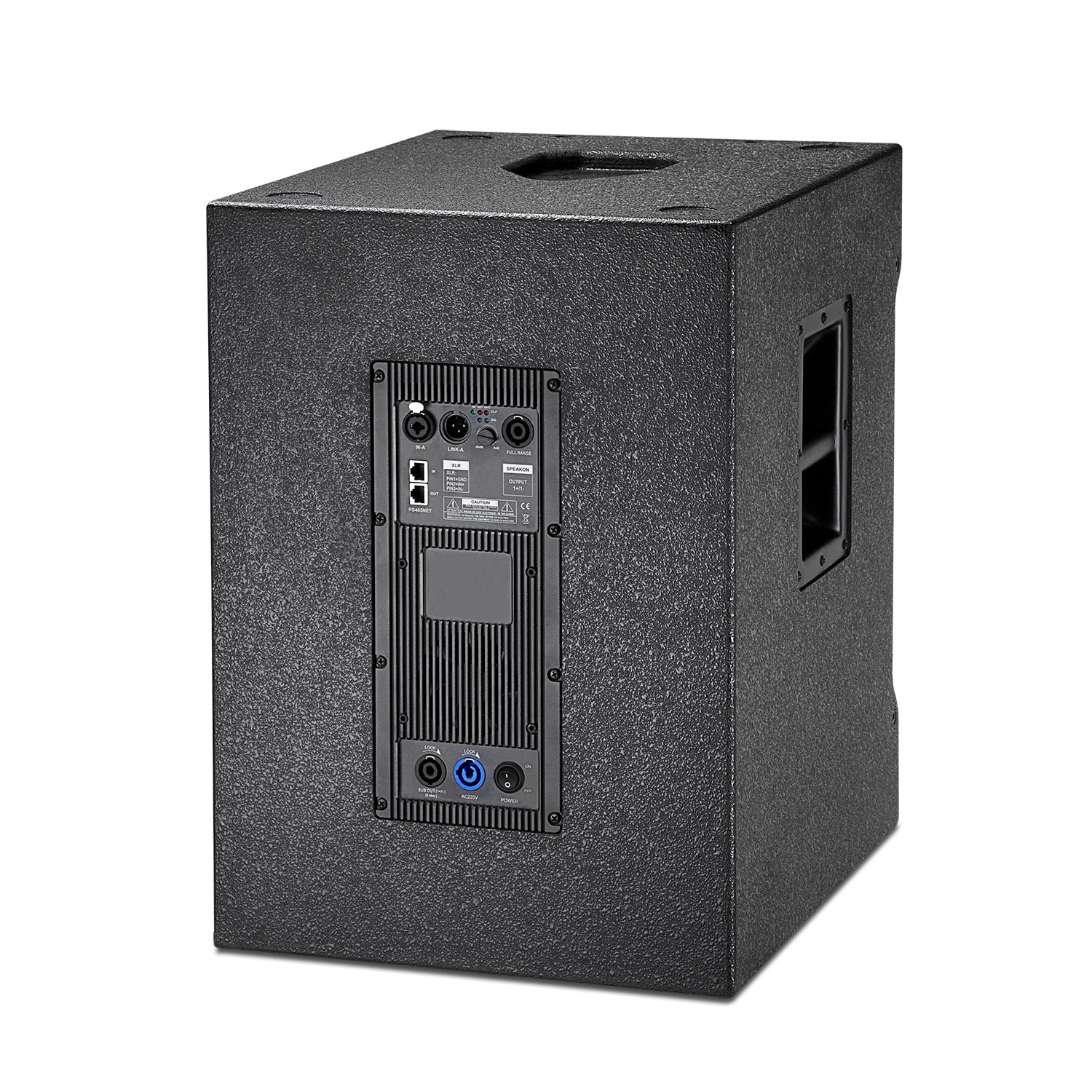

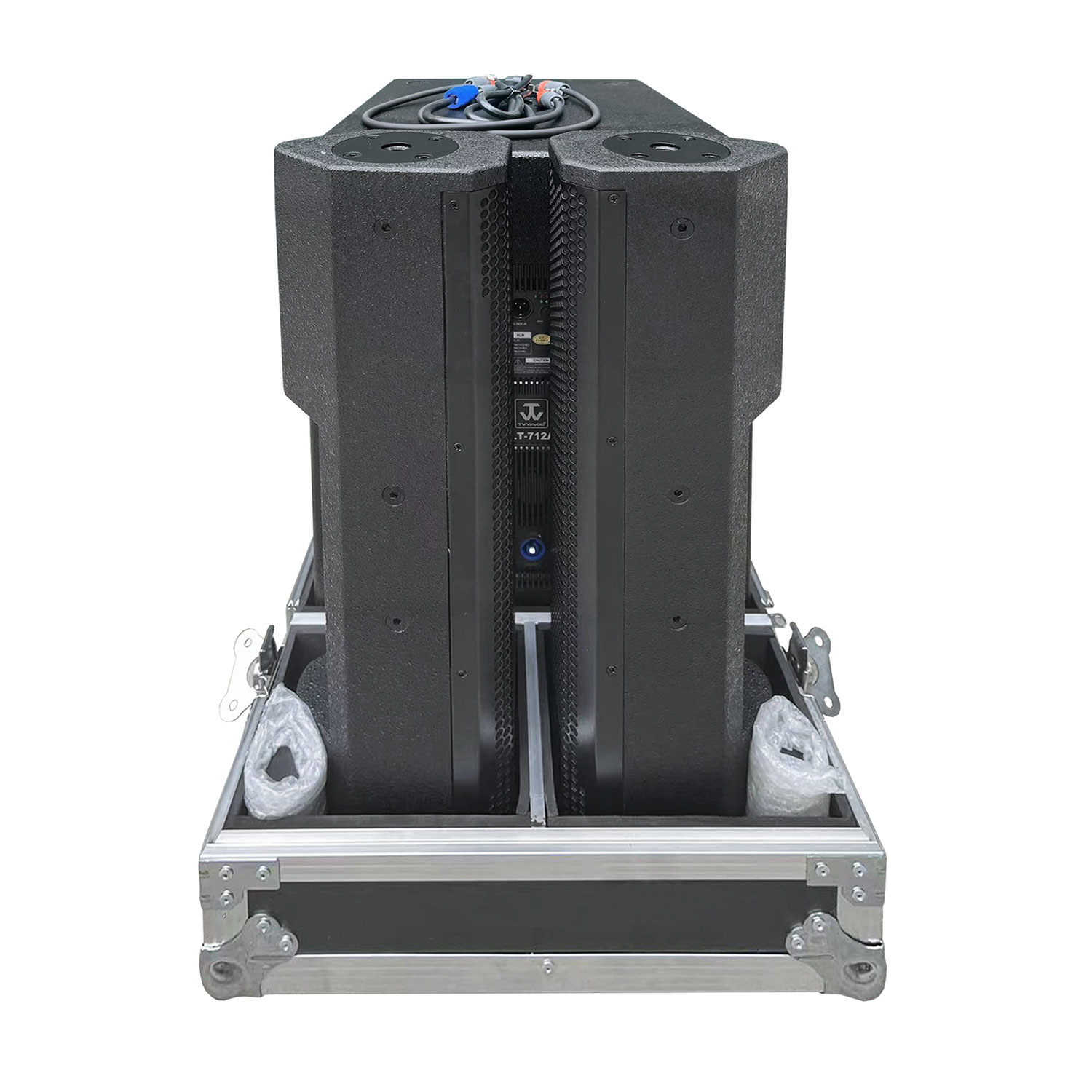

LT-712A is a single twelve inch active high-power subwoofer with a compact exterior structure and strong power, suitable for occasions with high sound amplification requirements. Its dynamic effect is full and soft, with full low-frequency and strong surround feeling, which can stretch and expand its expressive power. The installation method can be customized with professional hanging devices, which can be stacked 1-2 times with RT-803 or RT-403, or supported by branches for use. Alternatively, it can be used in conjunction with the LT-712 passive subwoofer. One LT-712A can be used with one LT-712 passive subwoofer and two RT-803 or RT-403.

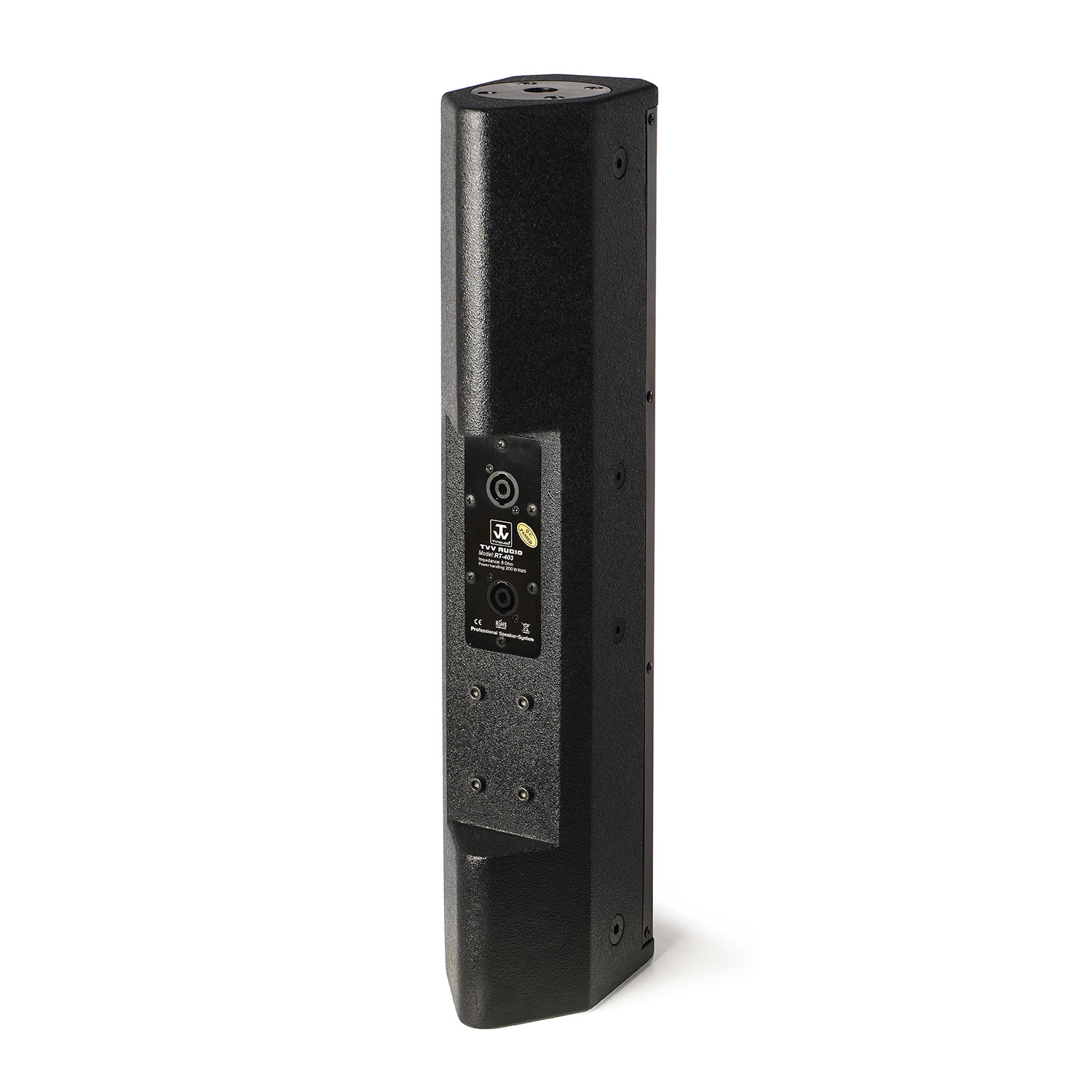

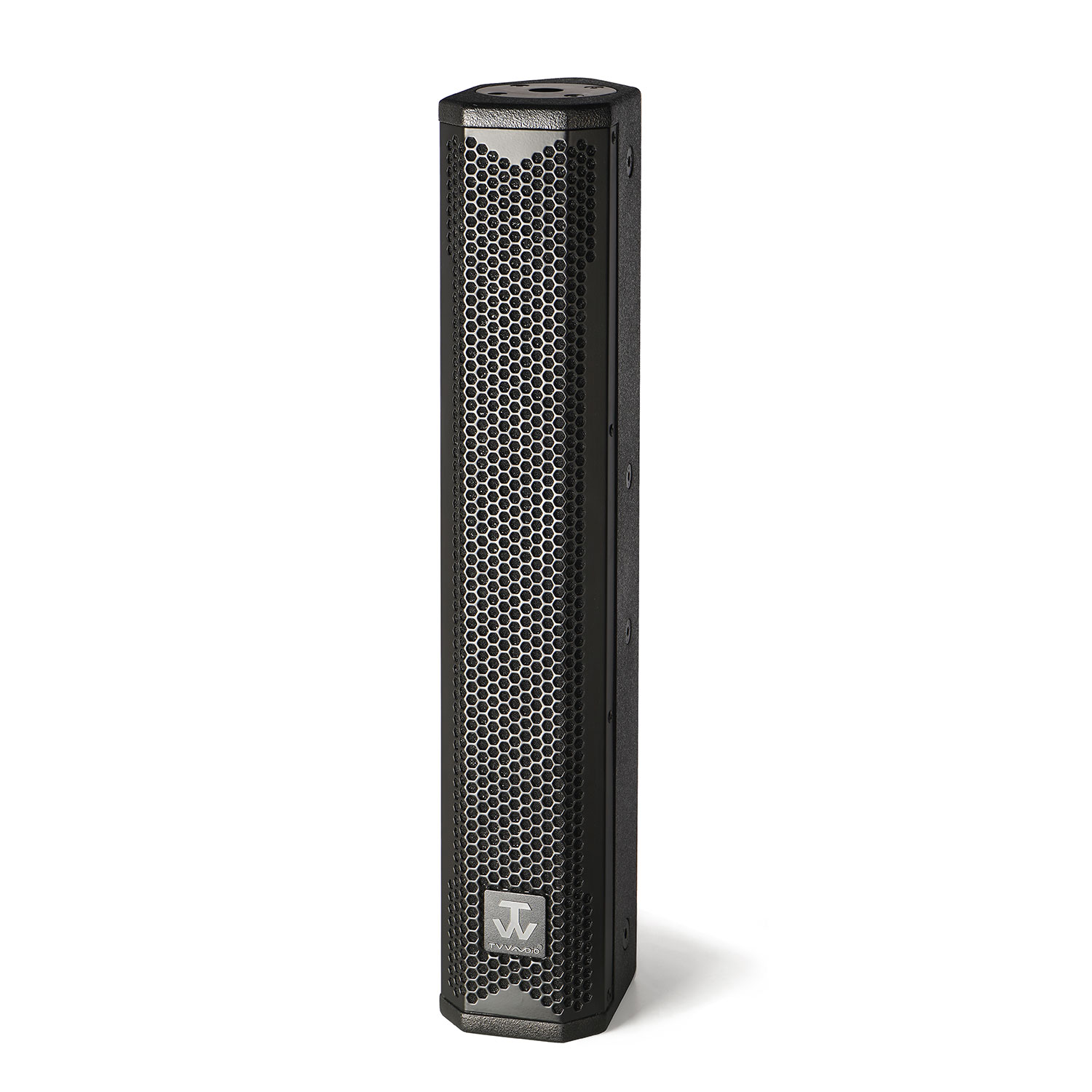

RT-403 is a high-performance five unit professional line column system with a stylish appearance and a compact and unique design. The mid-range dynamic effect of the speaker is easy and effortless, with delicate and sweet high notes, reproducing classic scenes. It can be paired with an active single 15 inch subwoofer LT-715A or an active single 12 inch subwoofer LT-712A to meet the sound amplification needs of different performance activities. The installation method uses standard hanging devices such as professional wall frames, 506 hangers, L-shaped frames, and M8 sheep horn rings, which can meet the installation requirements of different places.


Product Parameters:

Model: LT-712A

Technical Specifications

Rated Power: 350W RMS

Peak Power Program: 700W RMS

Unit configuration Component: LF 1 x 12 inches

Connection method: XLR IN/OUT

Sensitivity (1W @ 1M): 95dB

Maximum SPL: 125dB Peak @ 1M

Impedance: 8Ohm

Frequency Range: 55 Hz~250Hz

Color: Black or White

Net weight N. Weight: 39kgs

Box dimensions (W x D x H): 400 x 470 x 550mm

Packaging dimensions (W x D x H): 450 x 520 x 700mm

Amplifier Module Power: 2x800W @ 8Ohm


Model: RT-403

Technical Specifications

Rated Power: 200W RMS

Peak Power Program: 400W RMS

Unit configuration components: LF 4 x 3 inches+HF 1 x 1 inch

Connection: 2 x Neutrik Speakon (4 Pins 1+1-)

Sensitivity (1W @ 1M): 89dB

Maximum SPL: 119dB Peak @ 1M

Impedance: 8Ohm

Frequency Range: 100 Hz~18 KHz

Horn Dispersion: H90 x V 115 Degree

Color: Black or White

Net weight N. Weight: 5.9kgs

Box dimensions (W x D x H): 110 x 170 x 585mm

Packaging dimensions (W x D x H): 325 x 245 x 655mm [Air packed]

Combined with amplifier power Rec. Amplifier Power: 450~650W 8Ohm


Size & Specification:

Model: RT-403

Box dimensions (W x D x H): 110 x 170 x 585mm

Packaging dimensions (W x D x H): 325 x 245 x 655mm [Air packed]


Model: LT-712A

Box dimensions (W x D x H): 400 x 470 x 550mm

Packaging dimensions (W x D x H): 450 x 520 x 700mm
