LT-715A + RT-803

-Indoor and outdoor performances, bars, conference halls, hotel banquet halls, multifunctional halls, auditoriums, and other projects.
Detailed description:

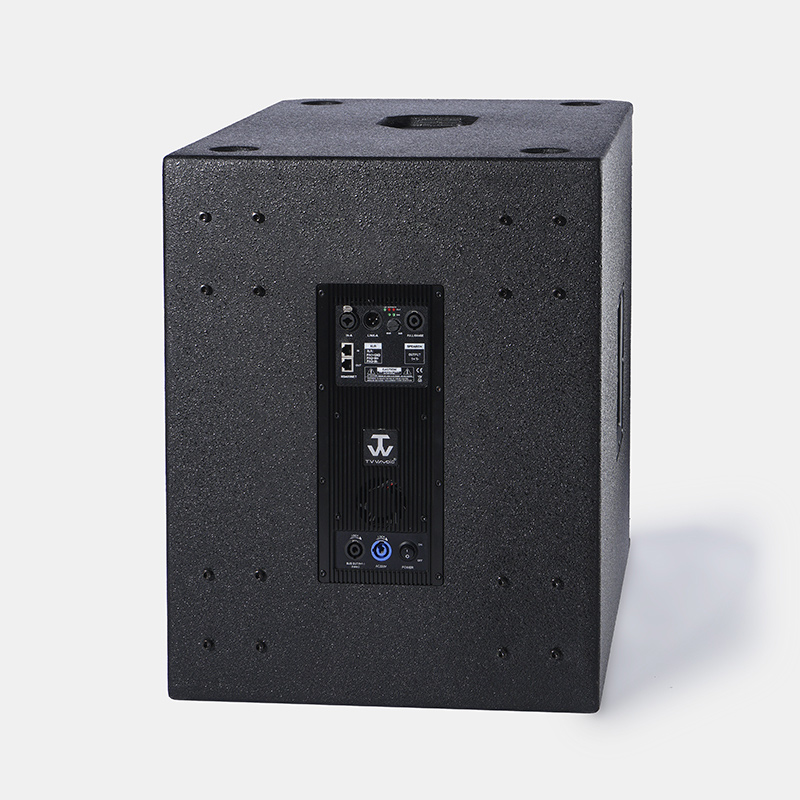

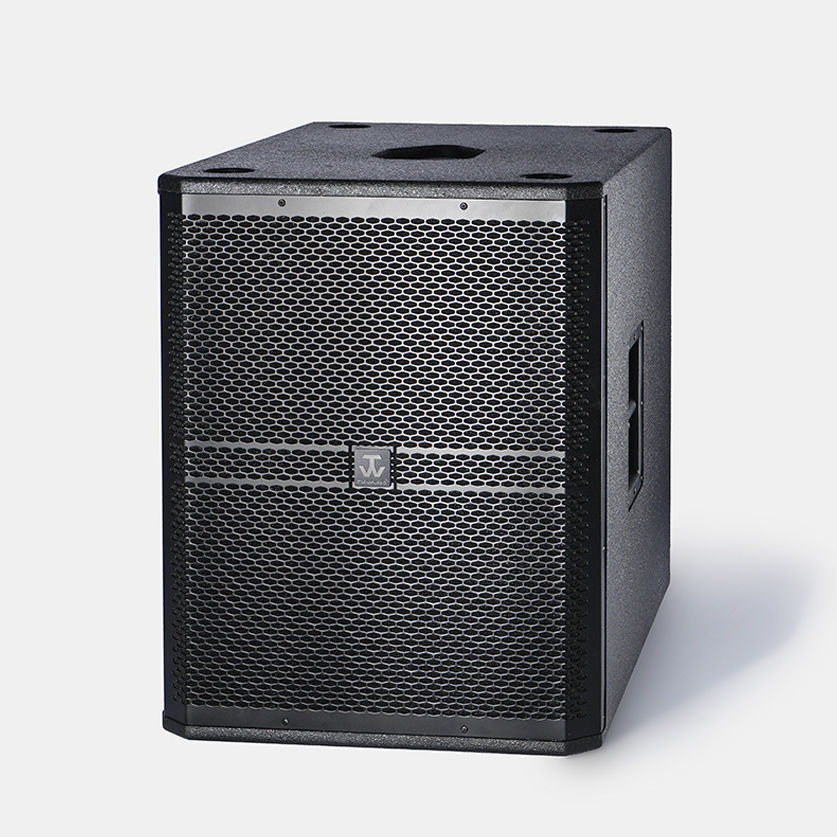

LT-715A is a single fifteen inch active high-power subwoofer with a compact exterior structure and strong power, suitable for occasions with high sound amplification requirements. Its dynamic effect is full and soft, with full low-frequency and strong surround feeling, which can stretch and expand its expressive power. The installation method can be customized with professional hanging devices, which can be stacked 1-2 times with RT-803 or RT-403, or supported by branches for use. Alternatively, it can be used in conjunction with the LT-715 passive subwoofer. One LT-715A can be used with one LT-715 passive subwoofer and two RT-803 or RT-403.

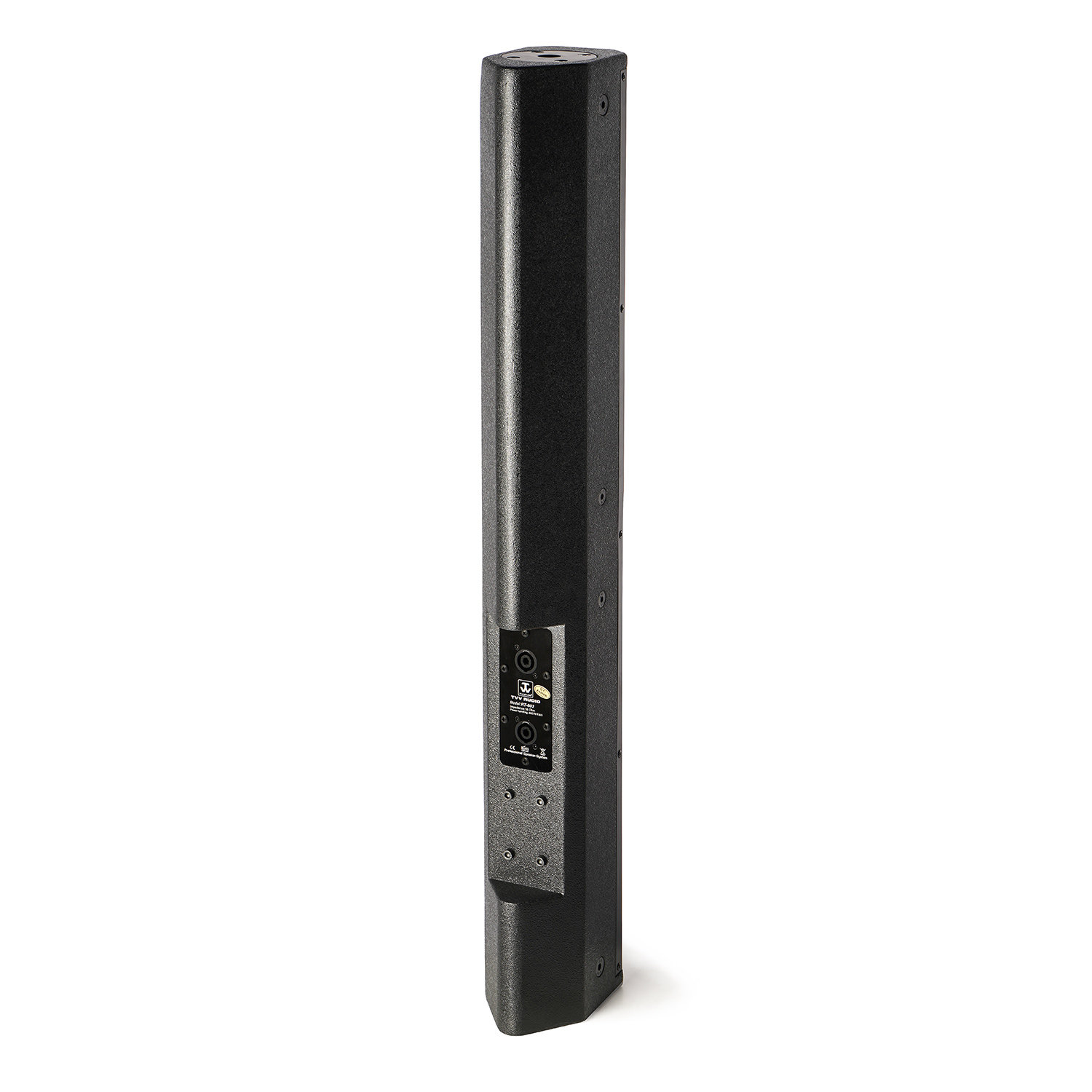

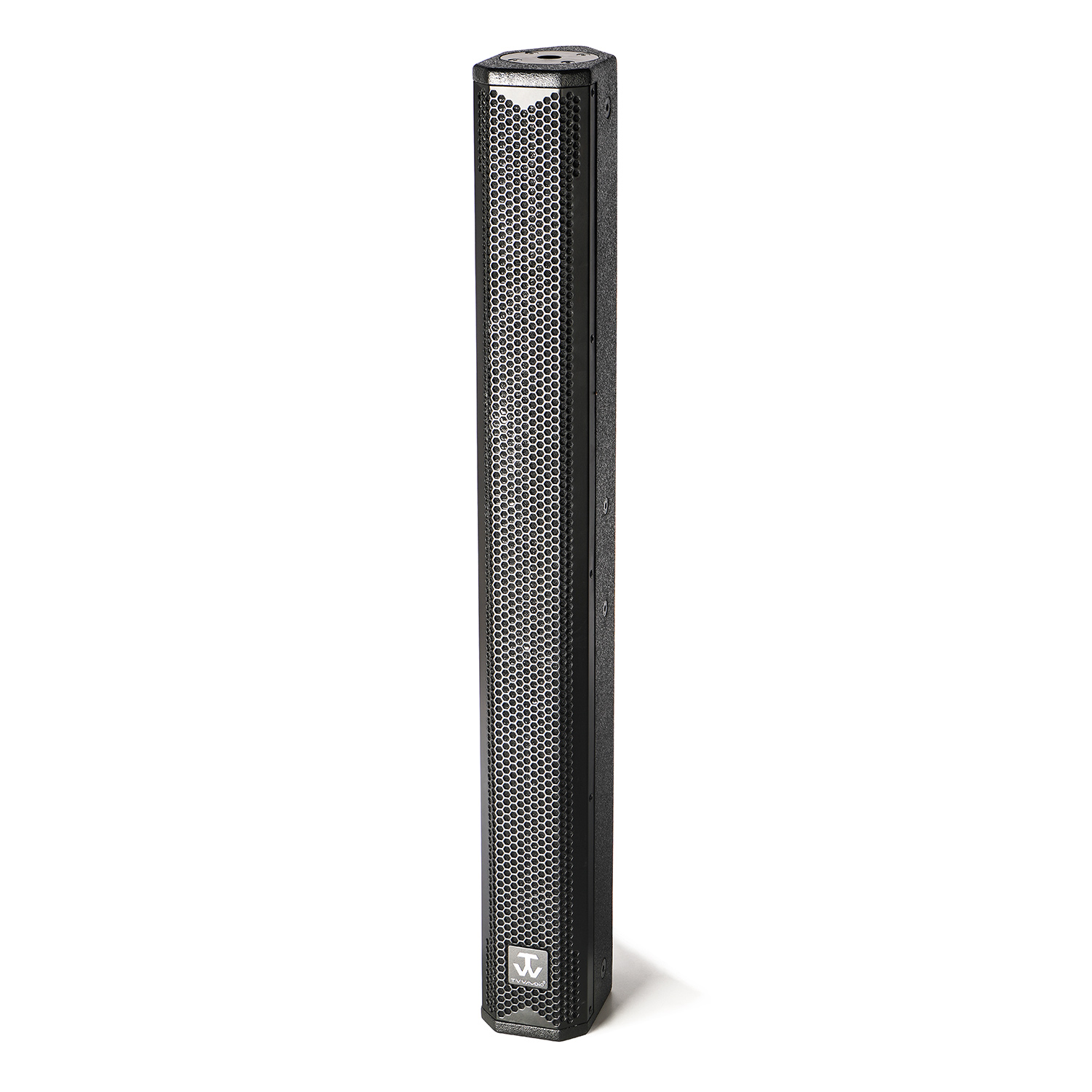

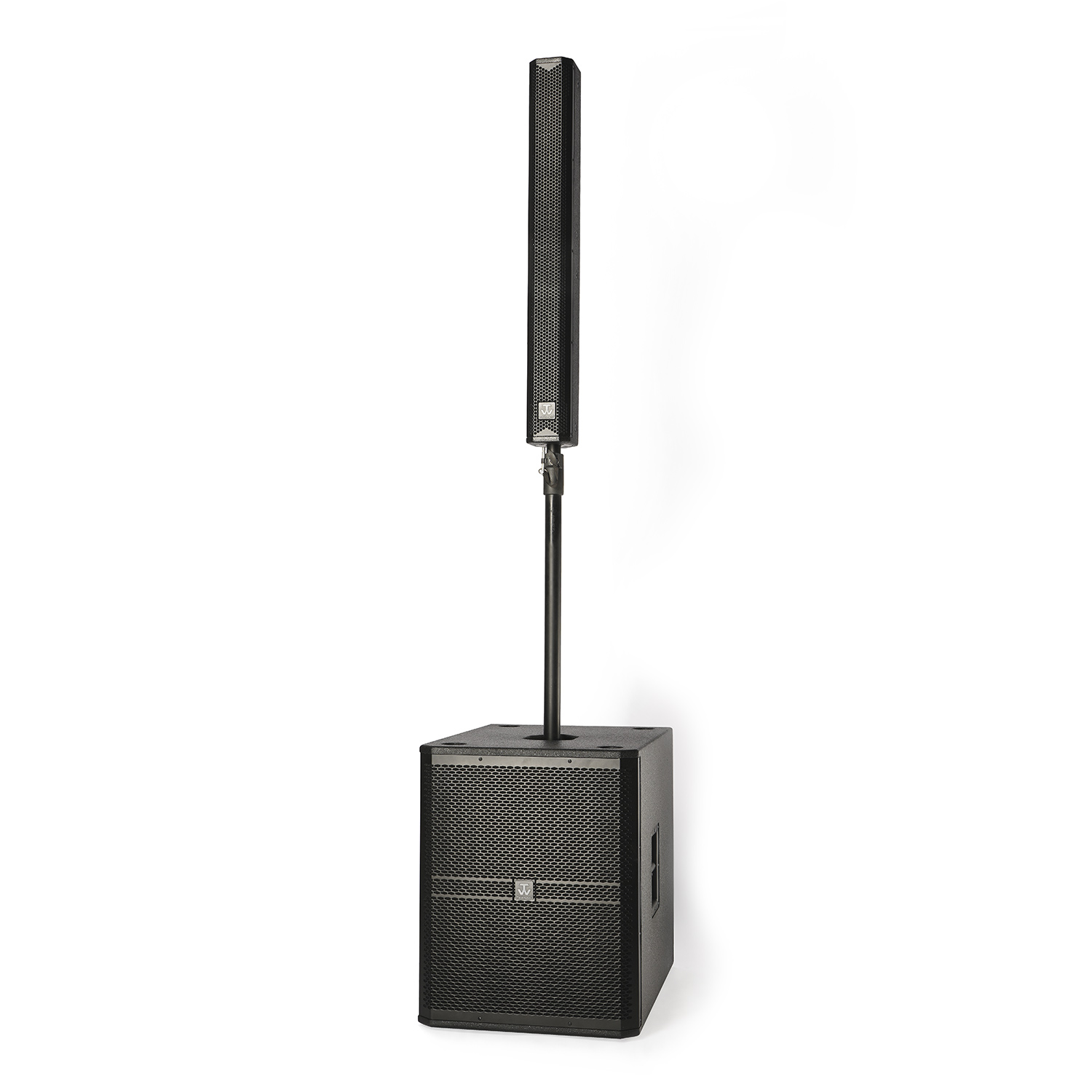

RT-803 is a high-performance nine unit professional line column system with a stylish appearance and a compact and unique design. The mid-range dynamic effect of the speaker is easy and effortless, with delicate and sweet high notes, reproducing classic scenes. It can be used together with the active single 15 inch subwoofer LT-715A to meet the sound amplification needs of different performance activities. The installation method uses standard hanging devices such as professional wall frames, 506 hangers, L-shaped frames, and M8 sheep horn rings, which can meet the installation requirements of different places.


Product Parameters:

Model: LT-715A

Technical Specifications

Rated Power: 500W RMS

Peak Power Program: 1000W RMS

Unit configuration Component: LF 1 x 15 inches

Connection method: XLR IN/OUT

Sensitivity (1W @ 1M): 97dB

Maximum SPL: 128dB Peak @ 1M

Impedance: 8Ohm

Frequency Range: 35 Hz~250Hz

Color: Black or White

Net weight N. Weight: 49kgs

Box dimensions (W x D x H): 497 x 700 x 614mm

Packaging dimensions (W x D x H): 775 x 572 x 684mm

Amplifier Module Power: 2x800W @ 8Ohm


Model: RT-803

Technical Specifications

Rated Power: 400W RMS

Peak Power Program: 800W RMS

Unit configuration components: LF 8 x 3 inches+HF 1 x 1 inch

Connection: 2 x Neutrik Speakon (4 Pins 1+1-)

Sensitivity (1W @ 1M): 91dB

Maximum SPL: 121dB Peak @ 1M

Impedance: 16Ohm

Frequency Range: 80 Hz~18 KHz

Horn Dispersion: H90 x V 115 Degree

Color: Black or White

Net weight N. Weight: 9.5kgs

Box dimensions (W x D x H): 110 x 170 x 925mm

Packaging dimensions (W x D x H): 325 x 245 x 995mm [Air packed]

Combined with amplifier power Rec. Amplifier Power: 450~650W 8Ohm


Size & Specification:

LT-715A

Box dimensions (W x D x H): 497 x 700 x 614mm

Packaging dimensions (W x D x H): 775 x 572 x 684mm


Model: RT-803

Box size Dimesion (W x D x H): 110 x 170 x 925mm

Packaging dimensions (W x D x H): 325 x 245 x 995mm [Air packed]


Project Applications:

Project application information
