LT-718A + LT-505

-Application projects: indoor and outdoor performances, bars, conference halls, hotel banquet halls, multifunctional halls, auditoriums, and other projects.
Detailed description:

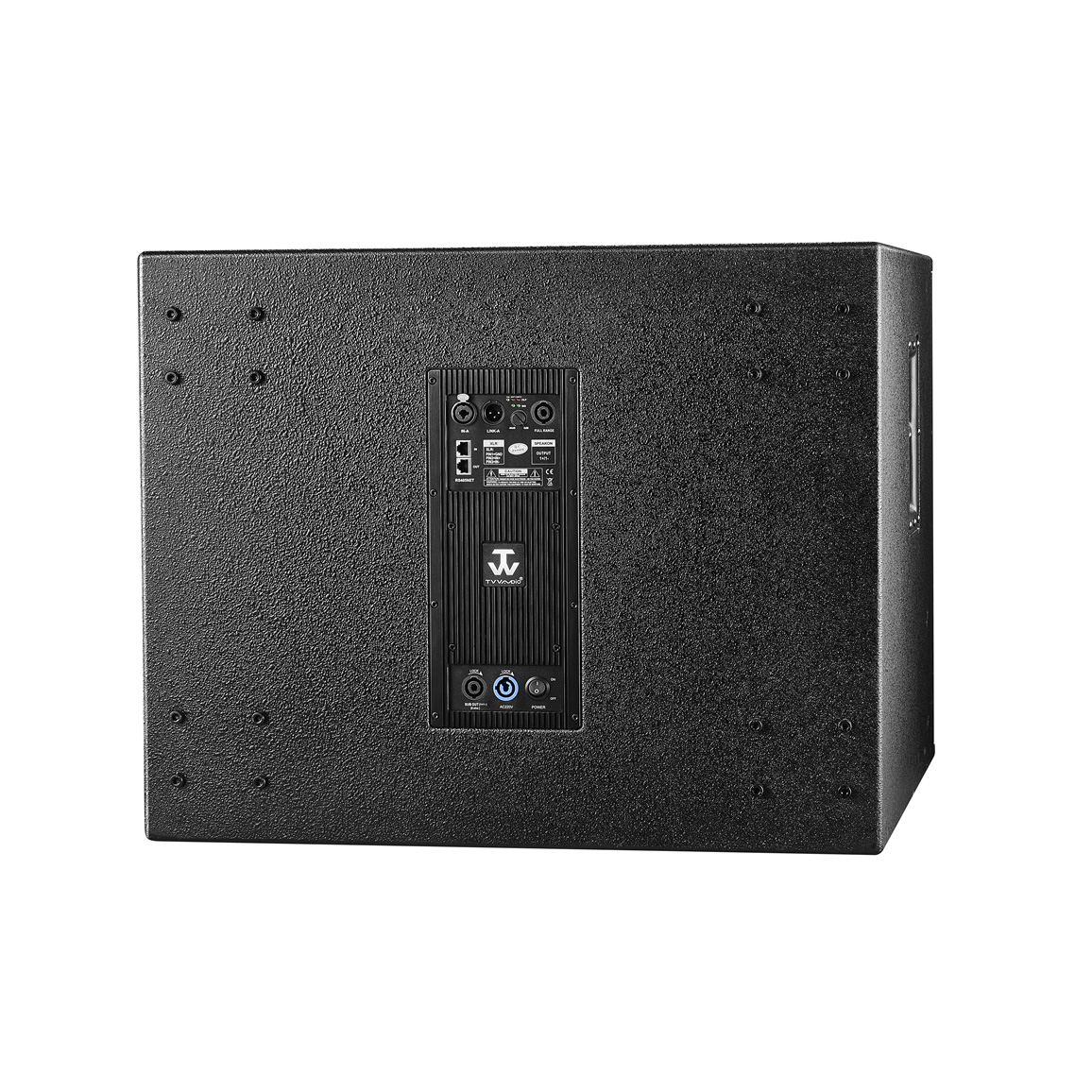

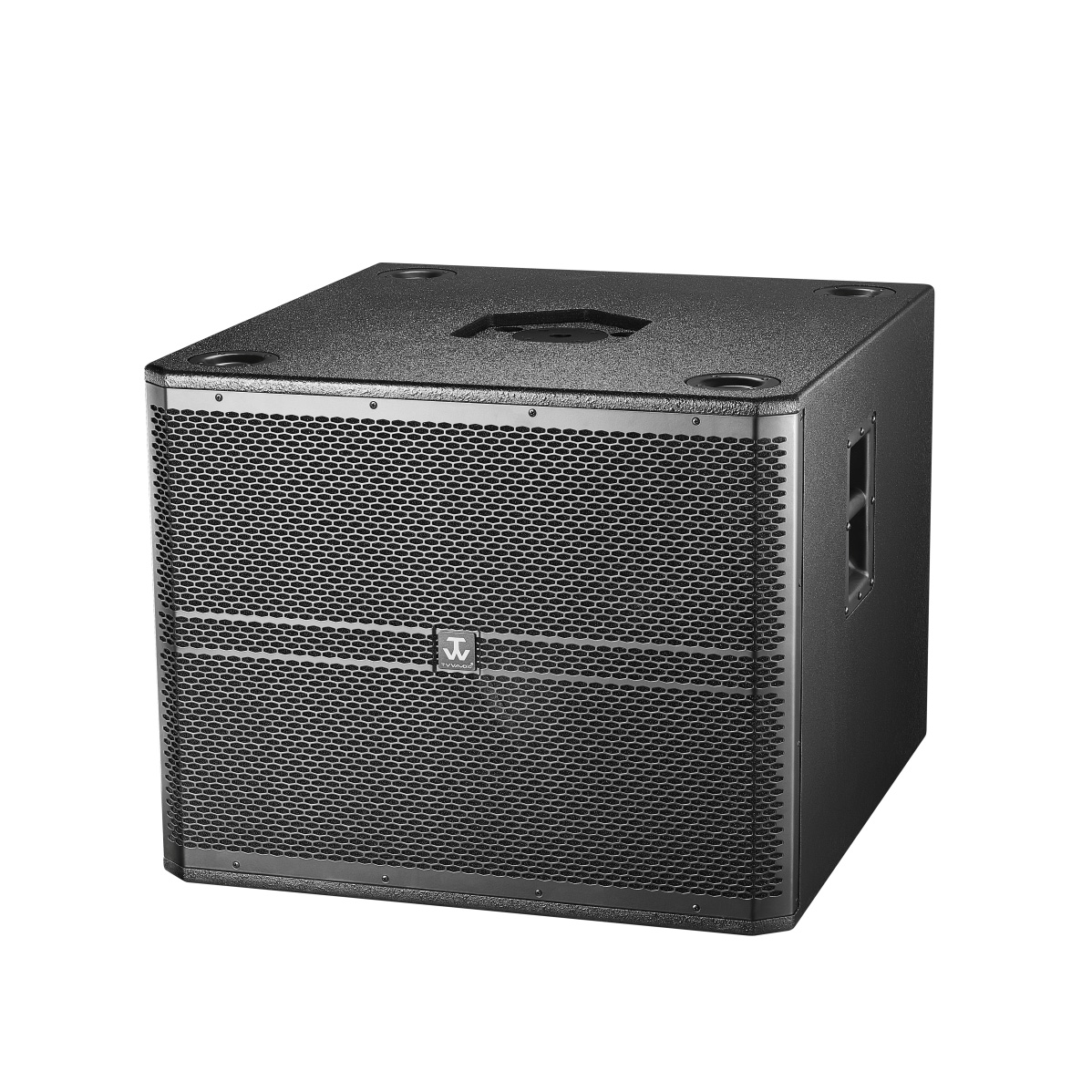

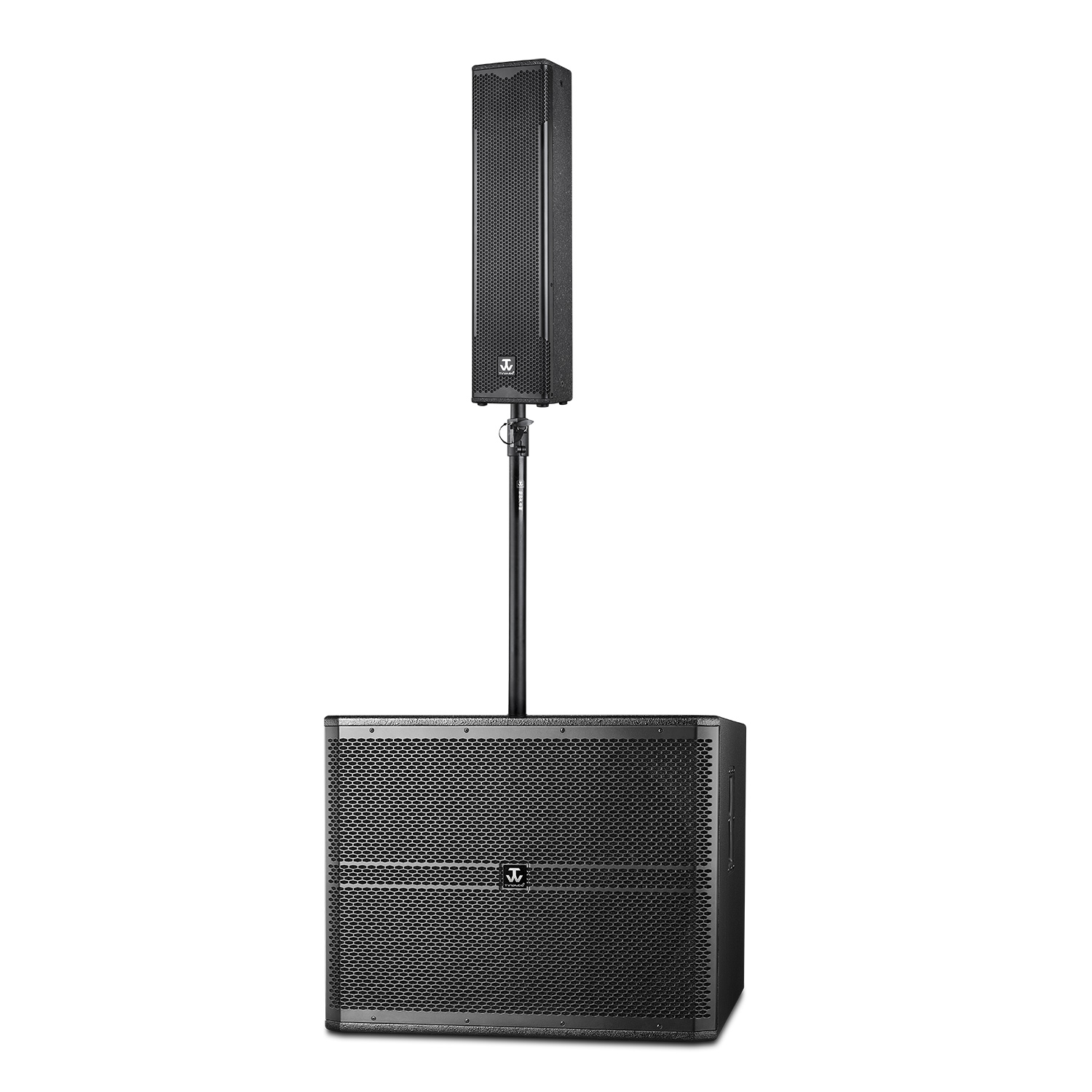

LT-718A is a horn loading single 18 inch active high-power subwoofer with a compact exterior structure and strong power, suitable for occasions with high sound amplification requirements. Its dynamic effect is full and soft, with full low-frequency and strong surround feeling, which can stretch and expand its expressive power. The installation method can be customized with professional hanging devices, which can be stacked 1-2 times with LT-505, or supported by branches for use. Alternatively, it can be used in conjunction with the LT-718 passive subwoofer. One LT-718A can be used with one LT-718 passive subwoofer and two LT-505s.

LT-505 is a high-performance professional grade line column system with a unique and compact appearance, realistic mid-range dynamics, easy and comfortable vocal effects, delicate and sweet high notes, reproducing classic scenes. It can be paired with an active single 18 inch subwoofer or an active double 15 subwoofer to meet the sound amplification needs of different performance activities. The installation method uses professional wall frames, 506 hangers, and standard hanging devices such as M8 sheep horn rings, which can be vertically or horizontally hung to meet the installation requirements of different places.


Product Parameters:

Model: LT-718A

Technical Specifications

Rated Power: 700W RMS

Peak Power Program: 1400W RMS

Unit configuration Component: LF 1 x 18inch

Connection method: XLR IN/OUT

Sensitivity (1W @ 1M): 98dB

Maximum SPL: 129dB Peak @ 1M

Impedance: 8Ohm

Frequency Range: 35 Hz~250Hz

Color: Black or White

Net weight N. Weight: 59.5kgs

Box dimensions (W x D x H): 700 x 740 x 560mm

Packaging dimensions (W x D x H): 815 x 775 x 630mm

Amplifier Module Power: 2x800W @ 8Ohm


Model: LT-505

Technical Specifications

Rated Power: 500W RMS

Peak Power Program: 1000W RMS

Unit configuration components: LF 4 x 5.5inch+HF 1 x 1.7inch

Connection: 2 x Neutrik Speakon (4 Pins 1+1-)

Sensitivity (1W @ 1M): 97dB

Maximum SPL: 128dB Peak @ 1M

Impedance: 8Ohm

Frequency Range: 70 Hz~18 KHz

Horn Dispersion: H90 x V 115 Degree

Color: Black or White

Net weight N. Weight: 13.8kgs

Box dimensions (W x D x H): 182 x 208.3 x 736mm

Packaging dimensions (W x D x H): 525 x 257 x 806mm [Air packed]

Combined with amplifier power Rec. Amplifier Power: 650~850W 8Ohm


Size & Specification:

LT-718A

Box dimensions (W x D x H): 700 x 740 x 560mm

Packaging dimensions (W x D x H): 815 x 775 x 630mm


LT-505

Box dimensions (W x D x H): 182 x 208.3 x 736mm

Packaging dimensions (W x D x H): 525 x 257 x 806mm [Air packed]
