LT-215AS + LT-110 B

-Application projects: Suitable for indoor and outdoor performances, high-end conference rooms, multifunctional halls, auditoriums, hotel banquet halls, and other projects.
Detailed description:

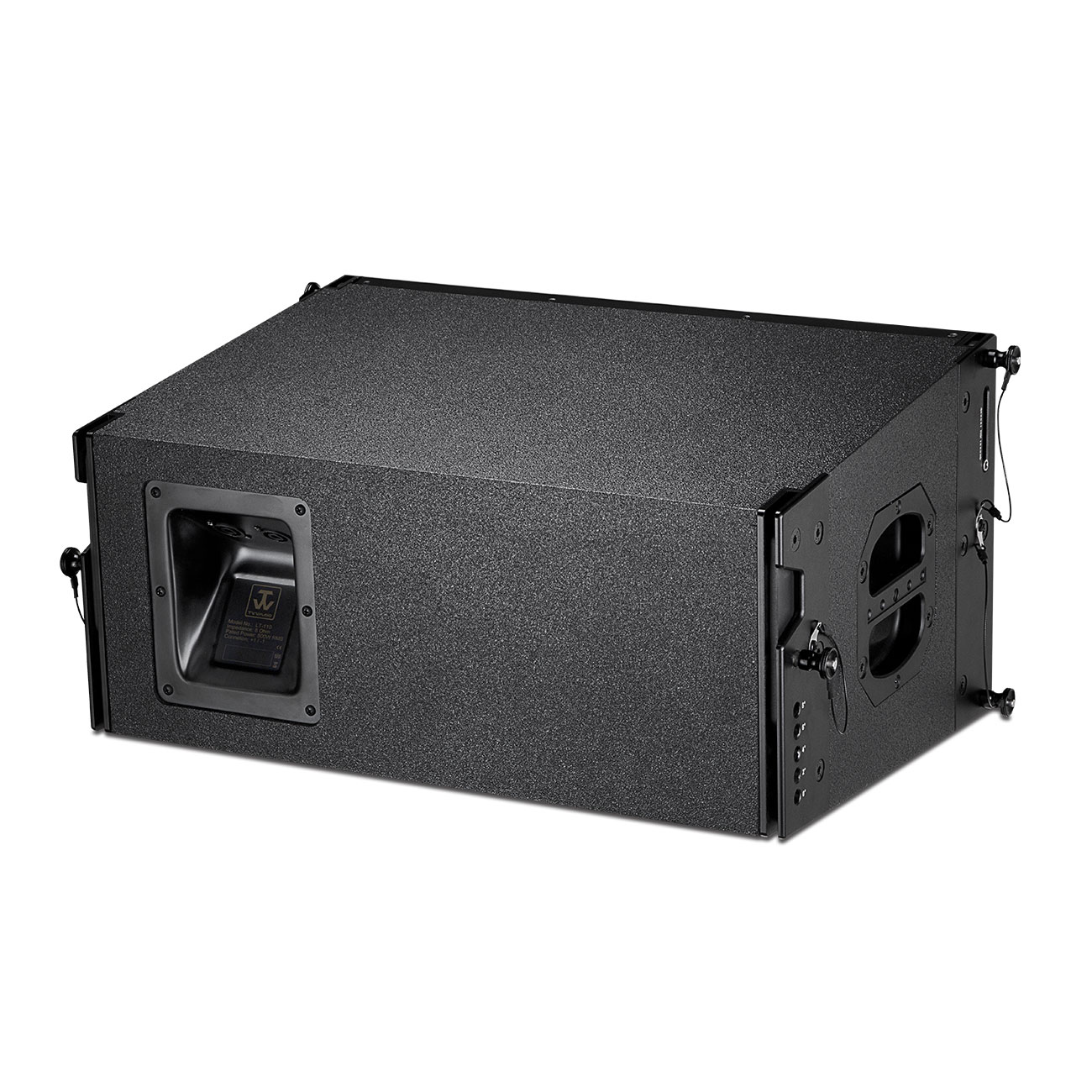

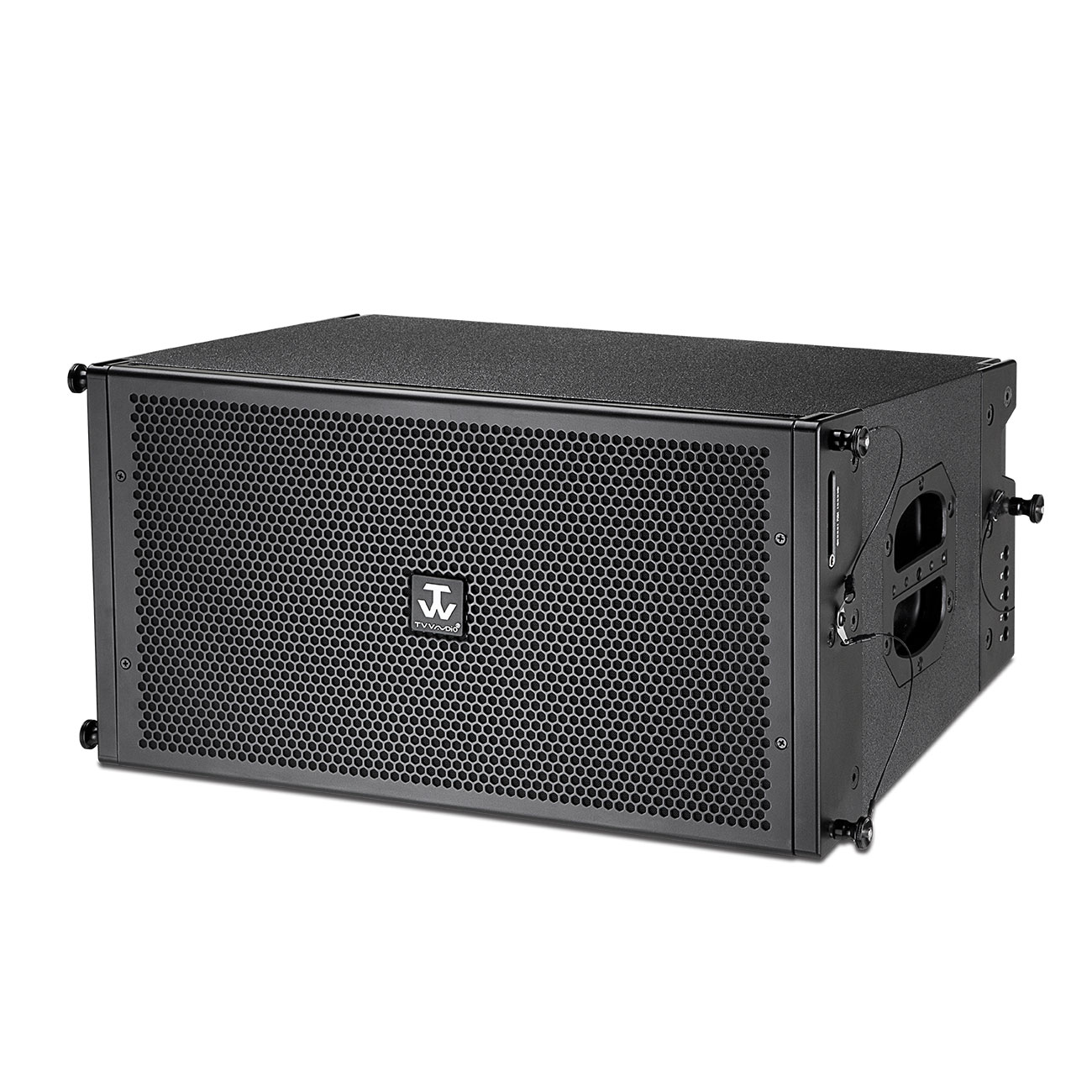

LT-110 is a compact high-power vertical linear array speaker that uses a low loss directional waveguide horn to form a 120 degree phase correspondence with the low frequency, allowing the concentrated transmission of mid to high frequency sound pressure to the farthest distance. The LT-110 linear speaker has clear sound, natural vocals, and strong mid-range penetration. Each box has an adjustable angle of 0-10 degrees between them, designed with a convenient hanging installation system, and can stack 2-4 boxes directly on top of the subwoofer for use. It can be paired with an active double fifteen subwoofer or a passive single eighteen subwoofer to meet the sound amplification needs of different performance activities. The installation method uses matching professional support frames, customized hangers, multiple stacking and customized hanging devices to meet the installation requirements of different places.

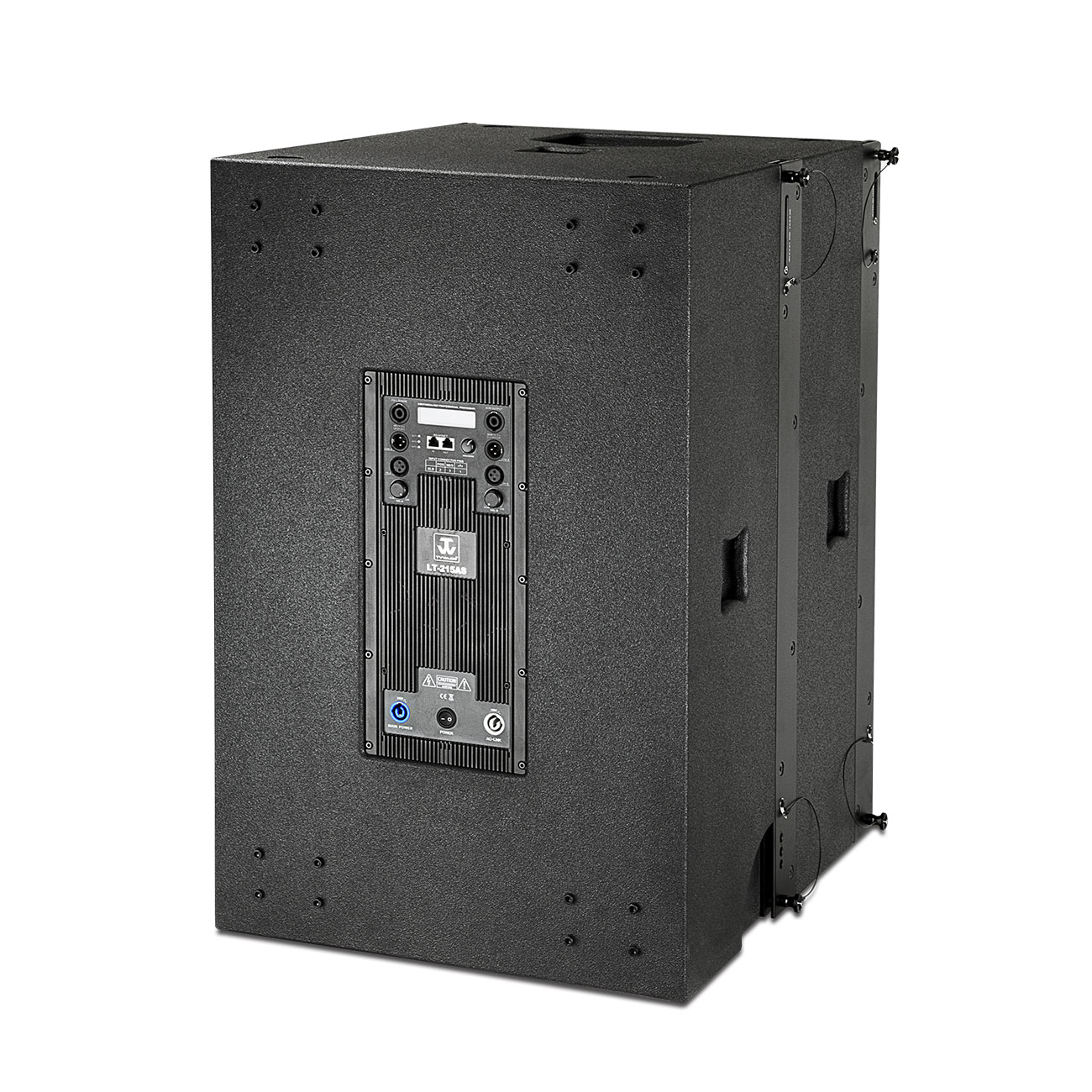

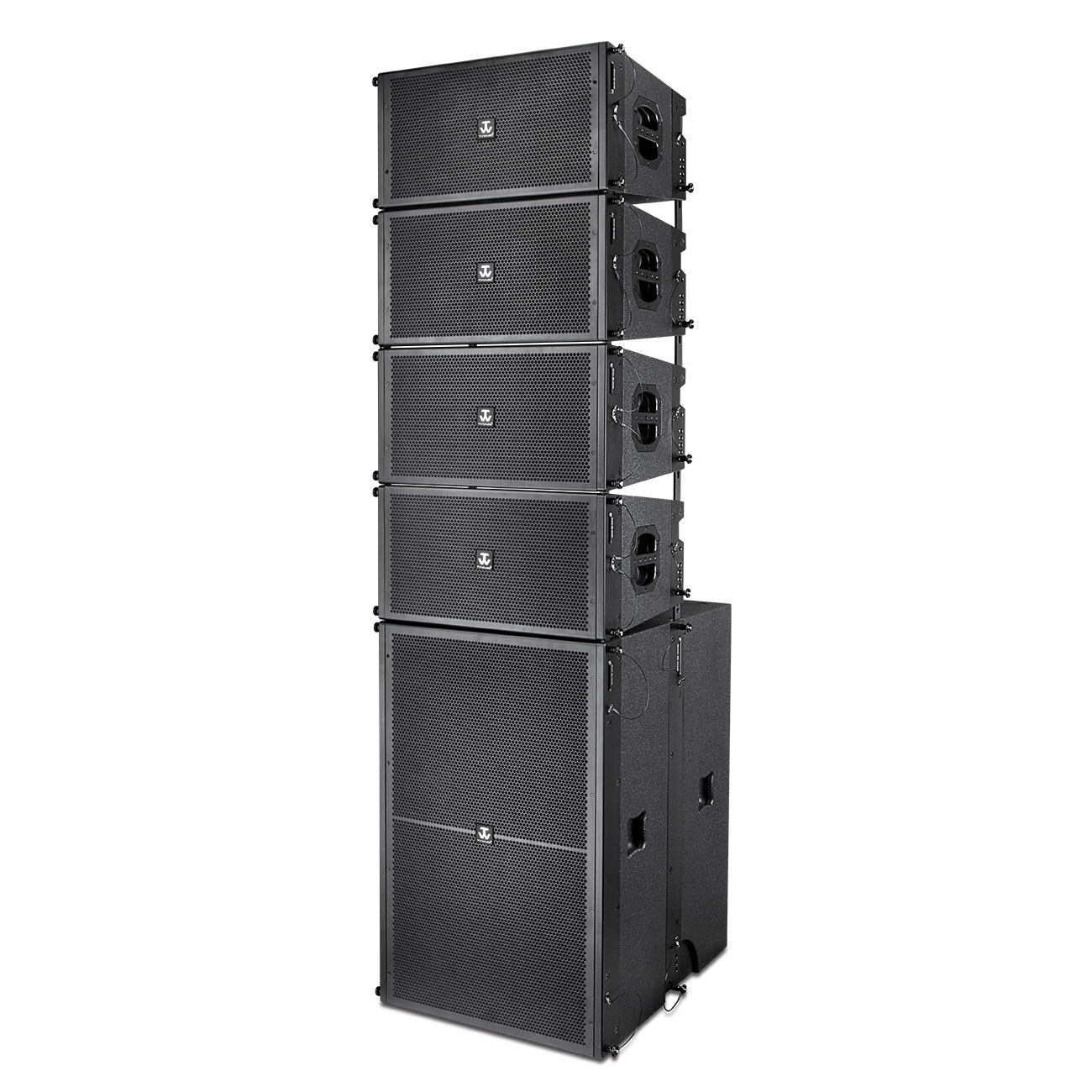

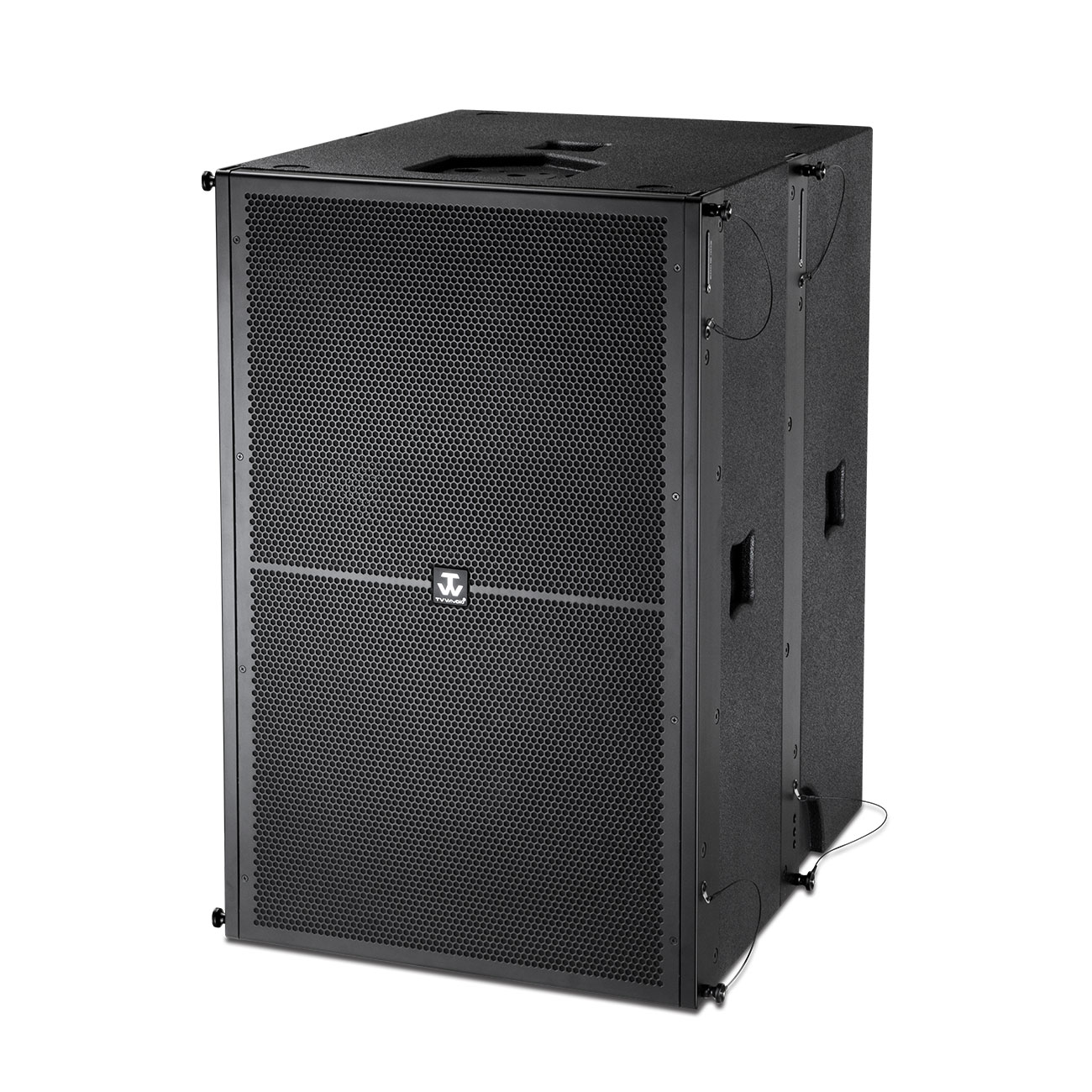

LT-215AS is a high-power three channel portable active dual fifteen subwoofer with DSP. It has a compact exterior structure and strong power, making it suitable for occasions with high sound amplification requirements. Its dynamic effect is full and soft, with full low-frequency and strong surround feeling, which can stretch and expand its expressive power. Factory preset perfect parameters, equipped with professional customized aviation boxes, easy to transport and install, can be used with 2 LT-110 supports, or stacked with 4 LT-110, or hung together with 8 LT-110.


Product Parameters:

Model: LT-110

Technical Specifications

Rated Power: 500W RMS

Peak Power Program: 1000W RMS

Unit configuration components: LF 1 x 10 inches+HF 2 x 1.7 inches Neo

Connection: 2 x Neutrik Speakon (4 Pins 1+1-)

Sensitivity (1W @ 1M): 99dB

Maximum SPL: 132dB Peak @ 1M

Impedance: 8Ohm

Frequency Range: 65 Hz~18 KHz

Horn Dispersion: H120 x V 10 Degree


Model: LT-215AS

Technical Specifications

Rated Power: 1000W RMS

Peak Power Program: 2000W RMS

Unit configuration Component: LF 2 x 15 inches

Connection method: XLR IN/OUT

Sensitivity (1W @ 1M): 105dB

Maximum SPL: 132dB Peak @ 1M

Impedance: 4Ohm

Frequency Range: 30 Hz~250Hz

Color: Black or White

Net weight N. Weight: 87kgs

Box dimensions (W x D x H): 560 x 700 x 870mm

Packaging dimensions (W x D x H): 939 x 845 x 590mm

Amplifier Module Power: 1x 1200W+2x800W @ 8Ohm

Color: Black or White

Net weight N. Weight: 26kgs

Box dimensions (W x D x H): 560 x 400 x 298.5mm

Packaging dimensions (W x D x H): 475 x 365 x 655mm

Combined with amplifier power Rec. Amplifier Power: 650~850W 8Ohm


Size & Specification:

Model: LT-110

Box dimensions (W x D x H): 560 x 400 x 298.5mm

Packaging dimensions (W x D x H): 475 x 365 x 655mm


Model: LT-215AS

Box dimensions (W x D x H): 560 x 700 x 870mm

Packaging dimensions (W x D x H): 939 x 845 x 590mm
